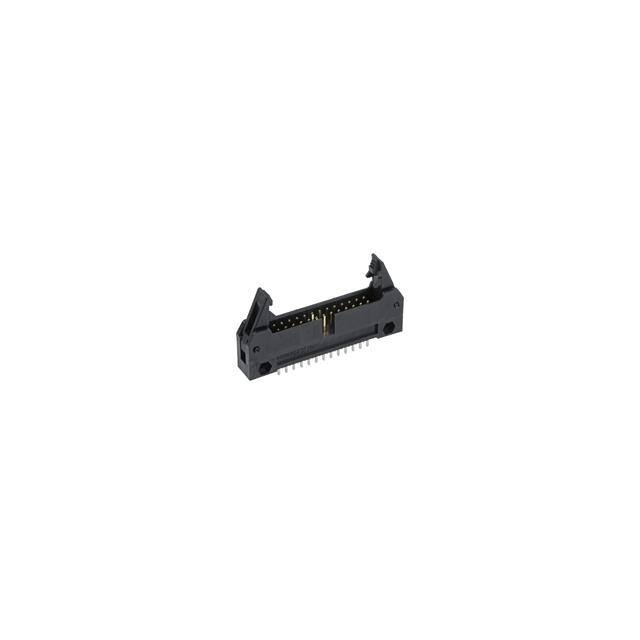

90663-3161

Manufacturer :

Molex

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

16

Insertion Force-Max :

3.4194 N

Insulation Resistance :

1000000000 Ω

Board Mounting Option :

HOLE .112-.124

Pbfree Code :

yes

Withdrawl Force-Min :

.5004 N

Termination :

Through Hole

Durability :

300 Cycles

Reach Compliance Code :

Compliant

Polarization Key :

MIL TYP and CENTER

Contact Resistance :

20 mΩ

DIN Conformance :

yes

Body/Shell Style :

Receptacle

Operating Temperature :

-25 to 85 °C

UL Flammability Code :

94V-0

Component Type :

PCB Header

Gender :

Header

Mating Contact Row Spacing :

0.1 inch

Reliability :

COMMERCIAL

Terminal Length :

0.127 inch

Contact Plating :

Gold

Connector Type :

BOARD CONNECTOR

Housing Material :

Polyester

Number of Contacts :

16

Insulator Color :

Black

Number of Rows :

2

Contact Gender :

Male

Mating Contact Pitch :

0.1 inch

MIL Conformance :

yes

Current Rating :

2.5 A

Number Of PCB Rows :

2

Housing Color :

Black

Pitch :

2.5400 mm

Contact Material :

Brass

Row Spacing :

2.54 mm

Subcategory :

Headers and Edge Type Connectors

HTS Code :

8536.69.40.40

Plating Thickness :

4u inch

Mounting Option 1 :

LATCH and EJECT

Terminal Pitch :

2.54 mm

Filter Feature :

No

Manufacturer :

Molex

Factory Lead Time :

25 Weeks, 5 Days

RoHS :

Compliant

Series :

*

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern :

RECTANGULAR

Body Breadth :

0.335 inch

Product Status :

Active

Number of Circuits :

16

PCB Contact Row Spacing :

2.54 mm

Mixed Contacts :

No

ECCN Code :

EAR99

Body Orientation :

RIGHT ANGLE

IEC Conformance :

No

Dielectric Withstanding Voltage :

500VAC V

Wire/Cable Type :

Ribbon Cable

Option :

GENERAL PURPOSE

Mounting Style :

RIGHT ANGLE

Radiation Hardening :

No

Voltage Rating (AC) :

250 V

Number of Positions :

16

Termination Method :

Solder

Additional Feature :

QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Termination Type :

Solder

Body Depth :

0.642 inch

Mounting Type :

BOARD

Glow Wire Compliant :

Non-Compliant

Contact Style :

SQ PIN-SKT

Country of Origin :

SK

Reference Standard :

UL

Mounting :

Through Hole

Package :

Box

Plating :

Tin

Product Length :

43.78 mm

Base/Housing Material :

Polyester

Rated Current (Signal) :

2.5 A
