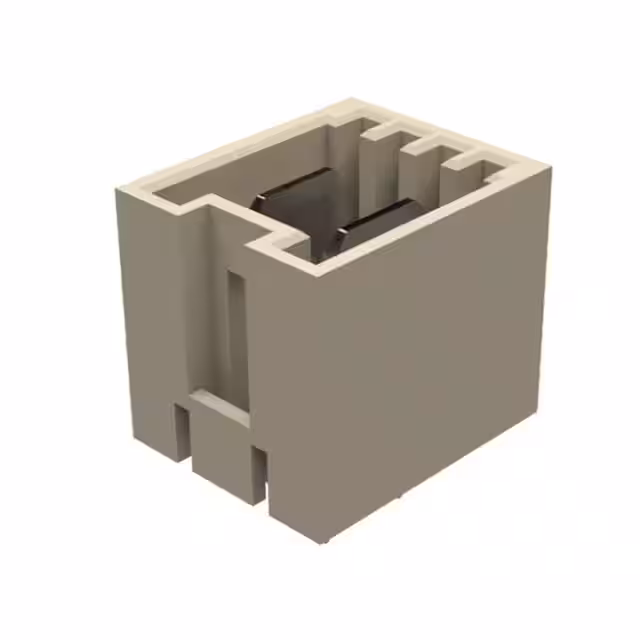

91999-0482

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Number of Ports :

1(Port)

Product Length (mm) :

12.3(mm)

Number of Terminals :

2

Product Depth (mm) :

14.9(mm)

Package :

Box

Flammability :

94V-0

Product Status :

Active

Housing Color :

Natural

Housing Material :

Nylon

Series :

*

Termination Method :

Solder

Contact Plating :

TIN OVER NICKEL

Voltage Rating Max :

250VAC

Type :

Wire to Board

Number of Contacts :

2(POS)

Contact Material :

Brass

Orientation :

Vertical

Operating Temp Range :

-20C to 120C

Gender :

HDR

Operating Temperature Min Deg. C :

-20C

Body Orientation :

Straight

Product Height (mm) :

12.8(mm)

Operating Temperature Max Deg. C :

120C

Product Diameter (mm) :

Not Required(mm)

Number of Contact Rows :

1

Application :

Power

Packaging :

Bag

Mounting Style :

Through Hole

Current Rating (Max) :

16/Contact(A)

Pitch (mm) :

5(mm)
