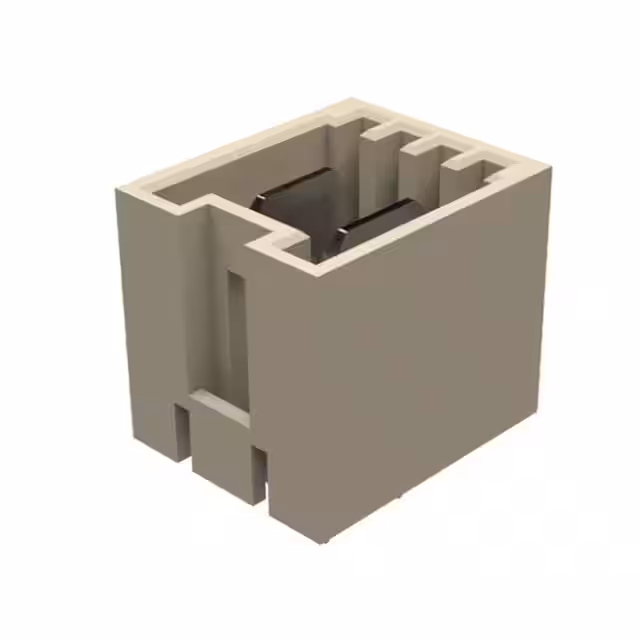

91999-1260

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Manufacturer :

Molex

Product Height (mm) :

12.8(mm)

Contact Plating :

Tin

Number of Rows :

1

Product Depth (mm) :

14.9(mm)

Contact Material :

Brass

Housing Color :

Natural

Operating Temperature Min Deg. C :

-20C

Reach Compliance Code :

Compliant

Flammability :

94V-0

Series :

*

ECCN Code :

EAR99

Product Length (mm) :

22.3(mm)

Type :

Wire to Board

Orientation :

Vertical

Operating Temp Range :

-20C to 120C

Housing Material :

Nylon

Number of Contact Rows :

1

Product Status :

Active

Packaging :

Bag

Operating Temperature Max Deg. C :

120C

Application :

Power

Gender :

Header

Product Diameter (mm) :

Not Required(mm)

Mounting Style :

Through Hole

Pitch (mm) :

5(mm)

Product Length :

22.3 mm

Pitch :

5.0000 mm

Number of Terminals :

4

Body Orientation :

Straight

Number of Ports :

1(Port)

Mounting :

Through Hole

HTS Code :

8536.69.40.30

Number of Contacts :

4

Operating Temperature :

-20 to 120 °C

Termination Method :

Solder

Base/Housing Material :

Polyamide 66

Current Rating (Max) :

16/Contact(A)

Factory Lead Time :

8 Weeks

Connector Type :

RECTANGULAR POWER CONNECTOR

Voltage Rating Max :

250VAC

Package :

Box
