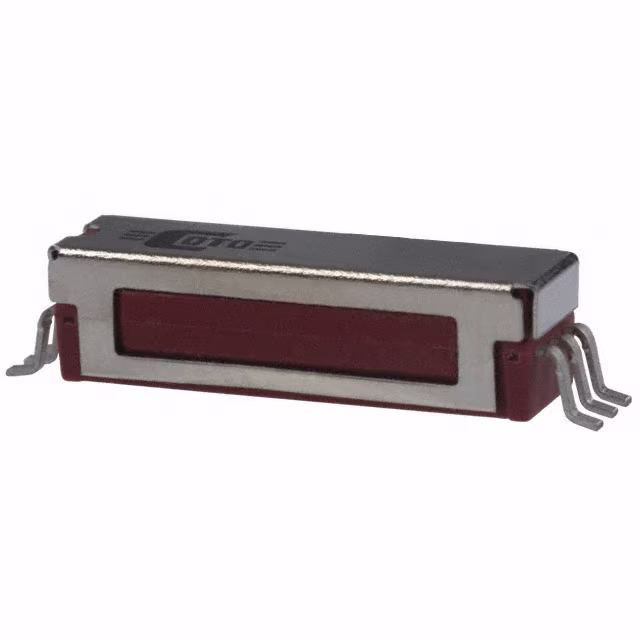

9270-05-00

Manufacturer :

Coto Technology

Product Category :

High Frequency (RF) Relays

Relay Action :

LATCHED

Release Time :

0.1ms

HTS Code :

8536.49.00.50

Contact (DC) Max Rating R Load :

0.5A@200VDC

Input Switching Control Type :

Random

Must Release Voltage :

0.4VDC

Coil Resistance :

100Ohm

Height :

4.9mm

Contact/Output Supply Type :

AC/DC

Operating Temperature :

-20°C~125°C

Factory Lead Time :

20 Weeks

Throw Configuration :

SPST

ECCN Code :

EAR99

Packaging :

Bulk

Coil Voltage :

5VDC

Series :

9270

Switching Current :

500mA

Dielectric Strength Between Open Contacts :

250 Vrms

Number of Contacts :

1

Termination Style :

Gull wing

Must Operate Voltage :

2.5VDC

Relay Type :

RF

Coil Type :

Non Latching

Coil/Input Supply Type :

DC

Body Breadth :

4.4 mm

Contact Form :

SPST-NO (1 Form A)

Sealing :

HERMETICAL

Mounting Type :

Surface Mount

Operate Time :

0.4ms

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Contact Voltage(AC)-Max :

200V

Published :

2012

Termination :

Gull wing

Contact Voltage(DC)-Max :

200V

Contact Current(AC)-Max :

0.5A

Dielectric Strength Between Coil and Contacts :

500 Vrms

Contact Current(DC)-Max :

0.5A

Feature :

Magnetic Shield

Coil Current :

50mA

Coil Voltage (DC) :

5V

Number of Terminations :

6

Contact (AC) Max Rating R Load :

0.5A@200VAC

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Switching Voltage :

200VAC 200VDC -Max

Current Rating :

1.5A
