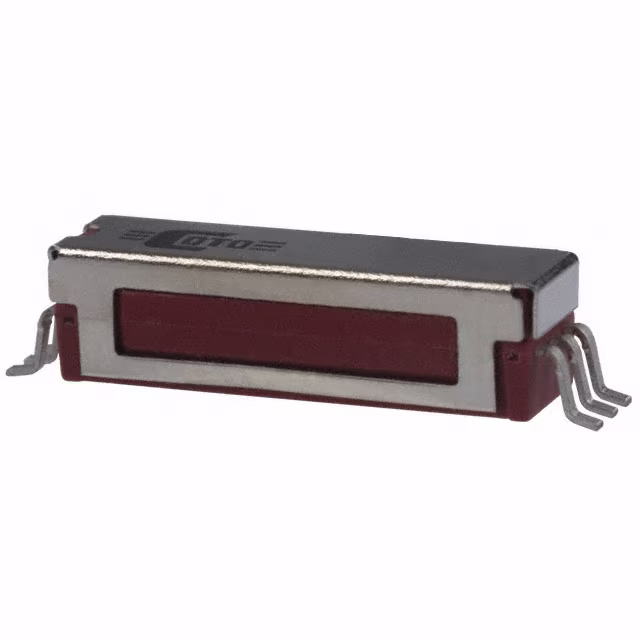

9270-12-00

Manufacturer :

Coto Technology

Product Category :

High Frequency (RF) Relays

Physical Dimension :

17.01mm x 4.4mm x 4.9mm

Insulation Resistance :

1000000000000Ohm

Coil Current :

30mA

Series :

9270

Contact Voltage(DC)-Max :

200V

Sealing :

HERMETICAL

Coil Voltage :

12VDC

Contact/Output Supply Type :

AC/DC

Contact (DC) Max Power Rating R Load :

10W@200VDC

Dielectric Strength Between Coil and Contacts :

500 Vrms

Coil Type :

Non Latching

Termination Style :

Gull wing

Throw Configuration :

SPST

Mounting Type :

Surface Mount

Factory Lead Time :

20 Weeks

Body Length or Diameter :

17.01mm

Number of Terminations :

6

Packaging :

Bulk

Input Switching Control Type :

Random

Termination :

Gull wing

Coil/Input Supply Type :

DC

Must Release Voltage :

1VDC

Switching Voltage :

200VAC 200VDC -Max

Electrical Life :

1000000000 Cycle(s)

Contact (DC) Max Rating R Load :

0.5A@200VDC

Mount :

Surface Mount

Dielectric Strength Between Open Contacts :

250 Vrms

Coil Resistance :

400Ohm

Contact Rating (Current) :

500mA

Operate Time :

0.4ms

Feature :

Magnetic Shield

Operating Temperature :

-20°C~125°C

Body Breadth :

4.4 mm

Body Height :

4.9mm

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Contact Voltage(AC)-Max :

200V

Published :

2012

Contact (AC) Max Rating R Load :

0.5A@200VAC

Coil Voltage (DC) :

12V

Contact Form :

SPST-NO (1 Form A)

Relay Type :

RF

Relay Action :

LATCHED

Must Operate Voltage :

6.7VDC

Release Time :

0.1ms
