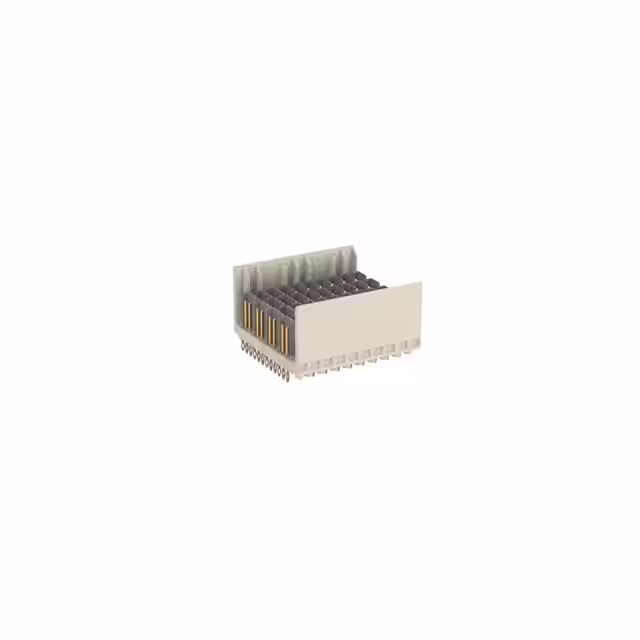

973061

Manufacturer :

TE Connectivity

Product Category :

Specialized

Product Depth (mm) :

23.4(mm)

Product Length (mm) :

24.95(mm)

Pitch (mm) :

2.5(mm)

Option :

GENERAL PURPOSE

Gender :

M

Mating Contact Pitch :

0.098 inch

UL Flammability Code :

94V-0

Manufacturer :

ERNI

Number Of PCB Rows :

8

PCB Contact Pattern :

RECTANGULAR

Body Depth :

0.528 inch

Contact Material :

COPPER ALLOY

Contact Plating :

Gold Over Nickel

Terminal Pitch :

2.5 mm

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Body Orientation :

Straight

Termination Type :

Press Fit

Termination Method :

Press Fit

JESD-609 Code :

e3

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Contact Rows :

8

Mounting Style :

Through Hole

Additional Feature :

40 GROUND SHIELD CONTACTS AVAILABLE

Product Height (mm) :

13.4(mm)

Operating Temp Range :

-55C to 125C

Current Rating (Max) :

0.9(A)

Total Number of Contacts :

80

Terminal Length :

0.067 inch

Mixed Contacts :

No

Connector Type :

BOARD CONNECTOR

Polarization Key :

POLARIZED HOUSING

Type :

Hard Metric

Mating Contact Row Spacing :

0.059 inch

Housing Material :

Liquid Cryst Polymer

Number of Contacts :

80Signal/40Ground(POS)

Contact Gender :

Male

Mounting Type :

BOARD

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Contact Style :

SQ PIN-SKT

Filter Feature :

No

Reach Compliance Code :

Compliant

Body Breadth :

0.922 inch

PCB Contact Row Spacing :

1.5 mm
