A-DF 25 AA/Z
Or copy the link below:
- Mfr.Part #
- A-DF 25 AA/Z
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS R/A SLDR
- Stock
- 122
- In Stock ：
- 122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Body/Shell Style :
- PLUG
- Minimum Operating Temperature :
- -40.0°C
- Number of Contacts :
- 25
- Total Number of Contacts :
- 25
- Shell Finish :
- Tin
- Contact Finish :
- Gold
- Termination :
- Solder
- Contact Pattern :
- STAGGERED
- Ingress Protection :
- -
- Flange Feature :
- Housing/Shell (Unthreaded)
- Current Rating :
- 3A
- ECCN (US) :
- EAR99
- Housing Material :
- PBT
- Length :
- 53.1mm
- Depth :
- 12.55mm
- Backset Spacing :
- 0.374 (9.50mm)
- Contact Style :
- RND PIN-SKT
- Series :
- A-DF
- Termination Method :
- Solder
- Number Of PCB Rows :
- 2
- Contact Plating :
- Gold Over Nickel
- Package :
- Tray
- Automotive :
- No
- Contact Finish Thickness :
- Flash
- Mounting Option 2 :
- LOCKING
- Contact Form :
- Machined
- Reliability :
- COMMERCIAL
- Mating Contact Row Spacing :
- 0.112 inch
- Reach Compliance Code :
- Compliant
- PCB Contact Row Spacing :
- 2.8448 mm
- Subcategory :
- D Type Connectors
- Contact Gender :
- FEMALE
- PPAP :
- No
- Mounting Option 1 :
- HOLE .112-.124
- Features :
- -
- Product Status :
- Active
- Shell Material, Finish :
- Steel, Tin Plated
- Connector Type :
- Receptacle, Female Sockets
- Maximum Operating Temperature :
- +105°C
- Color :
- -
- EU RoHS :
- Compliant
- Additional Feature :
- QUALITY CLASS III
- Shell Size, Connector Layout :
- 3 (DB, B)
- Wire Gauge :
- -
- Contact Type :
- Signal
- Mounting Style :
- RIGHT ANGLE
- Number of Rows :
- 2
- Terminal Length :
- 0.138 inch
- Gender :
- FEMALE
- Mounting Type :
- Through Hole
- Pitch :
- 2.77mm
- Contact Material :
- Brass
- Body Breadth :
- 0.492 inch
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL,VDE
- Body Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- 5A
- Rated Current (Signal) :
- 3 A
- Mating Contact Pitch :
- 0.109 inch
- Terminal Pitch :
- 2.7686 mm
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Voltage Rating :
- 250.0 V
- Number of Positions :
- 25
- Termination Type :
- Solder
- Body Depth :
- 0.482 inch
- Manufacturer :
- ASSMANN WSW components GmbH
- Shell Material :
- Steel
- PCB Contact Pattern :
- STAGGERED
- Operating Temperature :
- -55°C ~ 105°C
- Datasheets

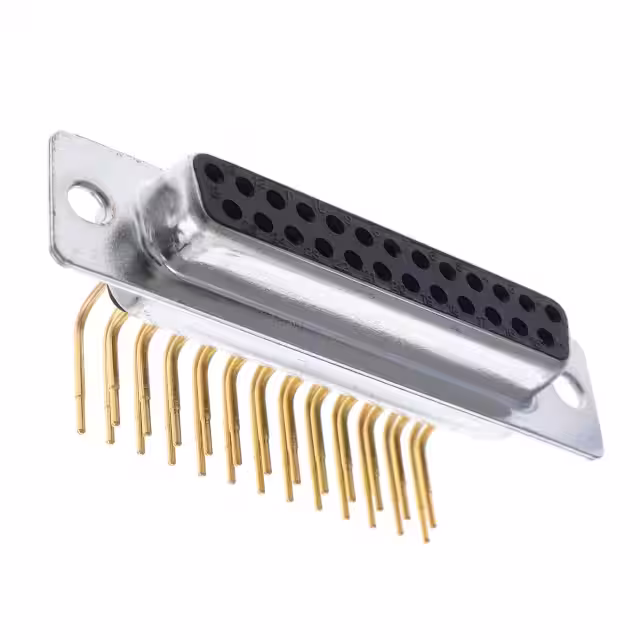

- A-DF 25 AA/Z
A-DF Series D-Sub Receptacle, Female Sockets 25-Position Female Signal Solder 3 (DB, B) Through Hole Brass Gold Steel, Tin Plated
A-DF 25 AA/Z Overview
The product is packaged in Receptacle, Female Sockets.Through Hole is the mounting type.As a product of the A-DF Series, it can be found in this category.There are also other features such as QUALITY CLASS III, to name only a few.The device is operating at -55°C ~ 105°C Operating Temperature.
