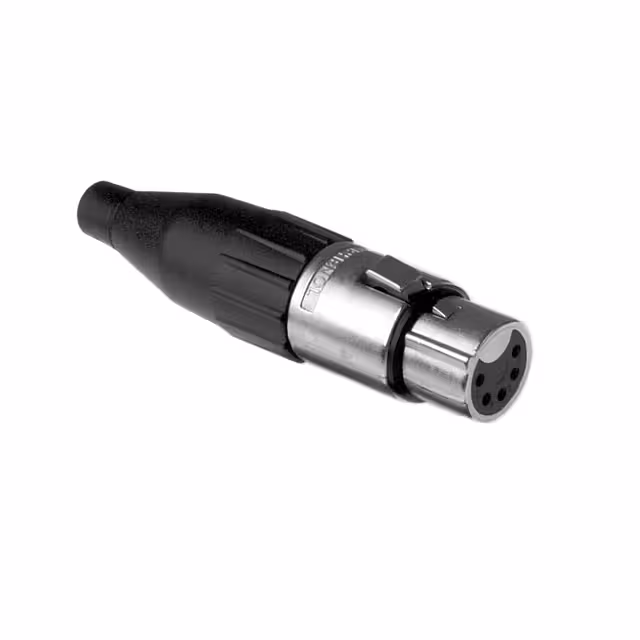

AC5F BULK

Share

Or copy the link below:

Mfr.Part #
AC5F BULK
Manufacturer
Amphenol Sine Systems
Package / Case
Datasheet
Download
Description
METAL PLUG STR CORD 5 SKT BULK
Stock
100
In Stock :
100

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Amphenol Sine Systems
Product Category :
Circular Connector Assemblies
Manufacturer :
Amphenol
Reach Compliance Code :
Unknown
IEC Conformance :
yes
Operating Temperature :
-25 to 75 °C
Product :
Connectors
Insert Material :
-
Features :
Backshell, Cable Clamp
Fastening Type :
Latch Lock
Option :
GENERAL PURPOSE
Standard :
Standard XLR
Mounting :
Cable Mount
Backshell Material, Plating :
Polyphenylene Ether (PPE)
Termination Style :
Solder
Mounting Type :
Free Hanging (In-Line)
Mounting Style :
Cable Mount
Contact Resistance :
3 mΩ
Product Category :
XLR Connectors
Cable Opening :
0.118 ~ 0.255 (3.00mm ~ 6.48mm)
Subcategory :
Audio and Video Connectors
Contact Gender :
FEMALE
Shell Size, MIL :
-
MIL Conformance :
No
Package :
Box
Rated Current (Signal) :
7.5 A
Ingress Protection :
IP40
Contact Plating :
Tin
Brand :
Amphenol Audio
Mounting Feature :
-
Product Length :
82 mm
Shell Size - Insert :
XLR
Primary Material :
Metal
Contact Finish - Mating :
Silver
Current Rating :
15 A
Contact Material :
Phosphor Bronze
Product Status :
Active
Gender :
Receptacle
Number of Ports :
1
Termination Type :
Solder
Color :
Nickel
Current Rating (Amps) :
7.5A
Orientation :
Straight
Body/Shell Style :
Socket
Shell Finish :
Nickel
Configuration :
1X1 VERTICAL
Shell Material :
Zinc Die Cast
Termination :
Solder Cup
Contact Finish Thickness - Mating :
-
Base Product Number :
AC5F
Product Type :
XLR Connectors
Connector Type :
Plug, Female Sockets
Mating Cycles :
1000 Cycle
Additional Feature :
STANDARDS: IEC 268-12
DIN Conformance :
No
Termination Method :
Solder
Series :
AC
Applications :
Audio
Voltage Rating :
133 V
Body Orientation :
Straight
Number of Contacts :
3 POS
Packaging :
Box
Number of Positions :
5 Position
Number of Poles :
5
Base/Housing Material :
Die-cast Zinc Alloy
Shell Plating :
Nickel
Shielding :
Unshielded
RoHS :
Details
Material Flammability Rating :
UL94 V-0
Datasheets
AC5F BULK
Introducing Circular Connector Assemblies Amphenol Sine Systems AC5F BULK from Xinshop,where excellence meets affordability. This product stands out with its Operating Temperature:-25 to 75 °C, Mounting Type:Free Hanging (In-Line), AC5F BULK pinout, AC5F BULK datasheet PDF, AC5F BULK amp .Beyond Circular Connector Assemblies Amphenol Sine Systems AC5F BULK ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

Amphenol Sine Systems AC5F BULK


AC5FBULK datasheet pdf and Barrel - Audio Connectors product details from Amphenol stock available at Xinshop
