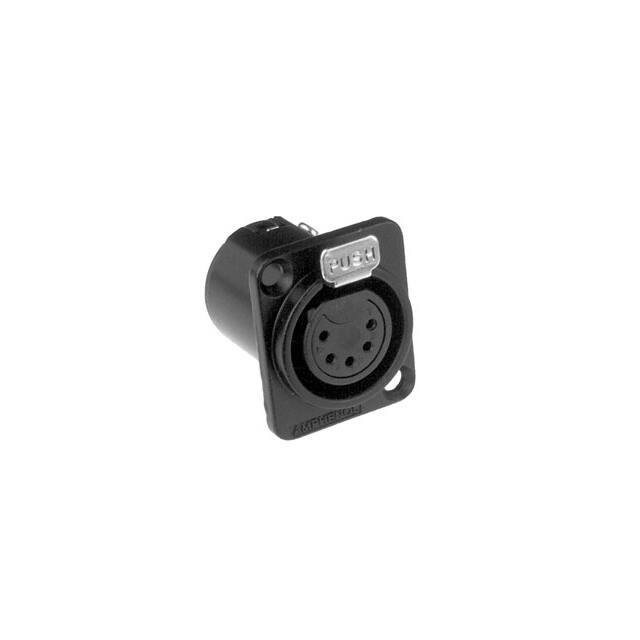

AC5FDZB BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Assemblies

MIL Conformance :

No

Mating Cycles :

1000 Cycle

Applications :

Audio

Contact Finish - Mating :

Silver

Backshell Material, Plating :

-

Number of Positions :

5 Position

Product Category :

XLR Connectors

Subcategory :

Audio and Video Connectors

Fastening Type :

Latch Lock

Packaging :

Box

Option :

GENERAL PURPOSE

Contact Finish Thickness - Mating :

-

Operating Temperature :

-25°C ~ 75°C

Shielding :

Unshielded

Number of Ports :

1

Contact Gender :

FEMALE

Cable Opening :

-

Contact Resistance :

3 mΩ

Manufacturer :

Amphenol

Orientation :

Straight

Additional Feature :

STANDARD: IEC-268-12

Shell Size - Insert :

XLR

Material Flammability Rating :

UL94 V-0

IEC Conformance :

yes

Product Status :

Active

Connector Type :

Plug, Female Sockets

Voltage Rating :

133 V

Shell Size, MIL :

-

Color :

Black

ECCN Code :

EAR99

Contact Material :

Phosphor Bronze

Body/Shell Style :

Socket

Termination :

Solder Cup

Mounting Type :

Panel Mount

Ingress Protection :

IP40

Product :

Connectors

Current Rating :

7.5 A

Package :

Box

Termination Style :

Solder

Rated Current (Signal) :

7.5 A

Shell Material :

Zinc Die Cast

Product Type :

XLR Connectors

Contact Plating :

Tin

Features :

-

Series :

AC

Number of Poles :

5

Current Rating (Amps) :

7.5A

Termination Type :

Solder

Primary Material :

Metal

Reach Compliance Code :

Unknown

RoHS :

Details

Mounting Style :

Chassis Mount

Base Product Number :

AC5F

Shell Finish :

Black

Gender :

FEMALE

Mounting Feature :

Flange

Brand :

Amphenol Audio

DIN Conformance :

No

HTS Code :

8536.69.40.10

Configuration :

1X1 VERTICAL

Standard :

Standard XLR

Insert Material :

Polyamide (PA66), Nylon 6/6, Glass Filled
