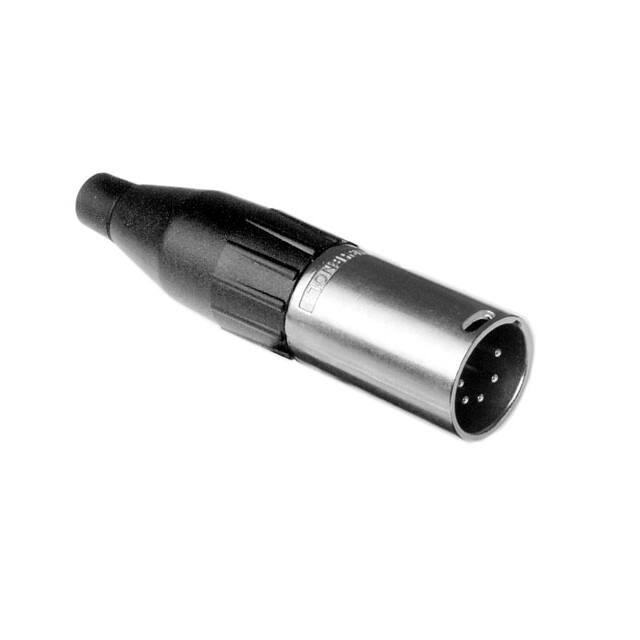

AC5M BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Assemblies

Base Product Number :

AC5M

Current Rating (Amps) :

7.5A

Features :

Backshell, Cable Clamp

Contact Finish Thickness - Mating :

-

Shell Plating :

Nickel

Termination Style :

Solder Cup

Mating Cycles :

1000 Cycle

Subcategory :

Audio and Video Connectors

Fastening Type :

Latch Holder

IEC Conformance :

yes

Insert Material :

-

Number of Positions :

5 Position

Shell Size - Insert :

XLR

Gender :

Male

Product Type :

XLR Connectors

Standard :

Standard XLR

Orientation :

Straight

Number of Ports :

1

Mounting Feature :

-

Option :

GENERAL PURPOSE

Contact Resistance :

3 mΩ

Brand :

Amphenol Audio

Shielding :

Unshielded

Rated Current (Signal) :

7.5 A

Configuration :

1X1 VERTICAL

Current Rating :

7.5 A

Shell Finish :

Nickel

Termination Type :

Solder

Mounting Type :

Free Hanging (In-Line)

Contact Finish - Mating :

Silver

Mounting Style :

-

Applications :

Audio

Connector Type :

Receptacle, Male Pins

Product :

Cable Connectors

Ingress Protection :

IP40

HTS Code :

8536.69.40.10

Additional Feature :

STANDARDS: IEC 268-12

Color :

Nickel

Series :

AC

MIL Conformance :

No

Primary Material :

Metal

Package :

Box

Cable Opening :

0.118 ~ 0.255 (3.00mm ~ 6.48mm)

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

DIN Conformance :

No

Voltage Rating :

133 V

Number of Poles :

5

Operating Temperature :

-25°C ~ 75°C

Product Status :

Active

Product Category :

XLR Connectors

Shell Material :

Zinc Die Cast

Shell Size, MIL :

-

RoHS :

Details

Termination :

Solder Cup

Reach Compliance Code :

Unknown

ECCN Code :

EAR99

Contact Gender :

Male

Manufacturer :

Amphenol

Contact Plating :

Silver

Backshell Material, Plating :

Polyphenylene Ether (PPE)
