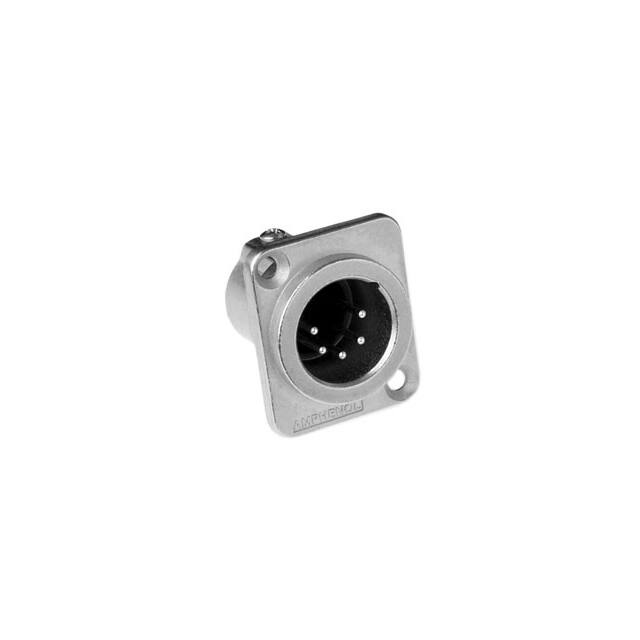

AC5MDZ BULK
Or copy the link below:
- Mfr.Part #
- AC5MDZ BULK
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- METAL PANEL MOUNT 5 PIN BULK
- Stock
- 16,186
- In Stock ：
- 16,186
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Assemblies
- Brand :
- Amphenol Audio
- RoHS :
- Details
- MIL Conformance :
- No
- Voltage Rating :
- 133 V
- Base Product Number :
- AC5M
- Termination :
- Solder Cup
- Standard :
- Standard XLR
- Shell Size - Insert :
- XLR
- Product :
- Connectors
- Mating Cycles :
- 1000 Cycle
- Rated Current (Signal) :
- 7.5 A
- Applications :
- Audio
- Fastening Type :
- Push-Pull
- IEC Conformance :
- yes
- Additional Feature :
- STANDARD: IEC-268-12
- Shell Material :
- Zinc Die Cast
- Number of Poles :
- 5
- Package :
- Box
- Product Category :
- XLR Connectors
- Operating Temperature :
- -25°C ~ 75°C
- Series :
- AC
- Number of Positions :
- 5 Position
- Orientation :
- Straight
- Contact Material :
- Phosphor Bronze
- Color :
- Nickel
- DIN Conformance :
- No
- Shielding :
- Shielded
- Primary Material :
- Metal
- Contact Gender :
- Male
- Subcategory :
- Audio and Video Connectors
- Features :
- Ground
- Gender :
- Male
- Current Rating :
- 7.5 A
- Material Flammability Rating :
- UL94 V-0
- Number of Ports :
- 1
- Manufacturer :
- Amphenol
- Contact Finish Thickness - Mating :
- -
- Shell Size, MIL :
- -
- Shell Finish :
- Nickel
- Mounting Type :
- Panel Mount
- Mounting Style :
- Chassis Mount
- Termination Style :
- Solder Cup
- Backshell Material, Plating :
- -
- Product Status :
- Active
- Contact Finish - Mating :
- Silver
- Shell Plating :
- Nickel
- Connector Type :
- Receptacle, Male Pins
- Option :
- GENERAL PURPOSE
- Configuration :
- 1X1 VERTICAL
- Insert Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Current Rating (Amps) :
- 7.5A
- Reach Compliance Code :
- Unknown
- Mounting Feature :
- Flange
- Product Type :
- XLR Connectors
- Cable Opening :
- -
- Ingress Protection :
- IP40
- Termination Type :
- Solder
- Contact Resistance :
- 3 mΩ
- Contact Plating :
- Silver
- Datasheets
- AC5MDZ BULK
