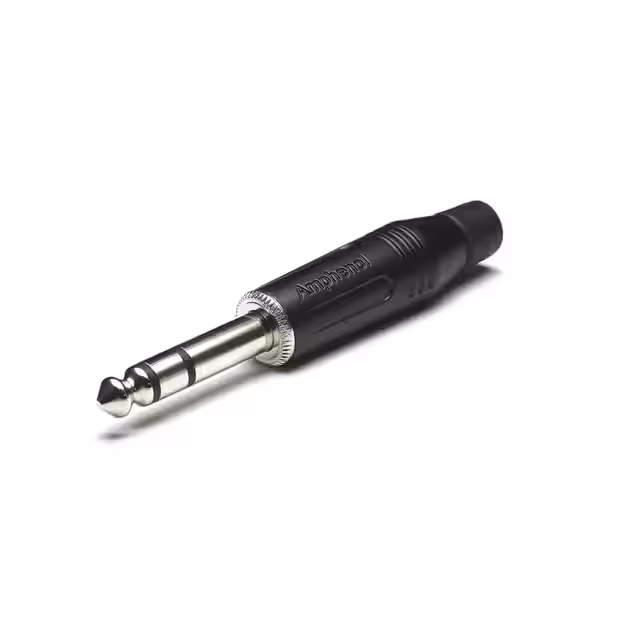

ACPS-GB BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Audio Connectors

RoHS :

Details

Connector Type :

Phone Plug

Additional Feature :

94V-0

Option :

GENERAL PURPOSE

Number of Positions :

3 Position

Panel Hole Size :

-

Body Material :

-

Housing Material :

Die Cast

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

Contact Plating :

Nickel

Shielding :

Unshielded

IEC Conformance :

No

Internal Switch(s) :

Does Not Contain Switch

Brand :

Amphenol Audio

Operating Temperature :

-25°C ~ 70°C

Contact Material - Plating :

Nickel

Thread Size :

-

Actual Diameter :

0.249 (6.32mm)

Standard :

1/4 in

Mating Cycles :

1000 Cycle

Gender :

Male

Voltage - Rated :

-

Termination :

Solder Eyelet(s)

Package :

Box

Current Rating (Amps) :

10 A

Product Type :

Phone Connectors

Configuration :

1X1 VERTICAL

Product Status :

Active

Number of Ports :

1

Contact Material :

Brass

Termination Type :

Solder

Number of Positions/Contacts :

3 Conductors, 3 Contacts

Reach Compliance Code :

Unknown

Orientation :

Straight

Termination Style :

Solder

Mating Length/Depth :

1.190 (30.30mm)

Base Product Number :

ACPS

MIL Conformance :

No

Voltage Rating :

-

Manufacturer :

Amphenol

Insulation Color :

-

Subcategory :

Audio and Video Connectors

Body Color :

Silver, Black

Product Category :

Phone Connectors

Body/Shell Style :

PLUG

Signal Lines :

Stereo (3 Conductor, TRS)

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Mounting Style :

CABLE

Features :

-

Switch Configuration :

Not Switched

Includes :

-

Cable Opening :

0.118 ~ 0.256 (3.00mm ~ 6.50mm)

Series :

M
