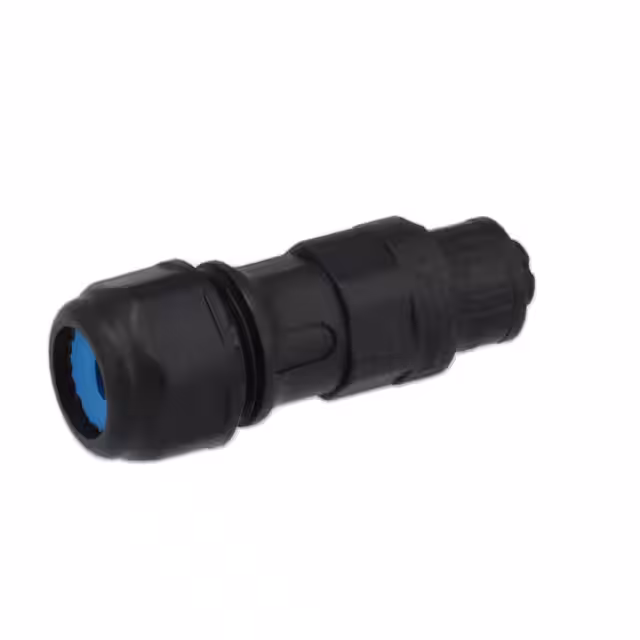

AD-03BFFB-QL8AP0

Manufacturer :

Amphenol LTW

Product Category :

Circular Connector Assemblies

Contact Gender :

Socket (Female)

Housing Gender :

FEMALE

Number of Contacts :

3

Material Flammability Rating :

-

RoHS :

Details

Flammability Rating :

UL 94 V-0

Connector Type :

Plug, Female Sockets

Backshell Material, Plating :

Thermoplastic

Brand :

Amphenol LTW

Mounting Type :

Free Hanging (In-Line)

Product Category :

Standard Circular Connector

IP Rating :

IP68

Contact Finish - Mating :

Gold

Mating Cycles :

1000 Cycle

Base Product Number :

AD-03BFFB

Operating Temperature :

-40°C ~ 105°C

Termination Style :

Screw

Mating Style :

Latch Lock

Product Status :

Active

Shell Finish :

-

Current Rating :

5 A

Series :

X-Lok

Color :

Black

Package :

Bag

Shell Material :

-

Shell Size - Insert :

A-3

Termination Method :

Screw

Contact Finish Thickness - Mating :

-

Subcategory :

Circular Connectors

Product :

Connectors

Number of Positions :

3

Shell Size :

-

Shielding :

Unshielded

Features :

Backshell, Coupling Nut

Mounting Angle :

Straight

Accessory Type :

-

Primary Material :

-

Contact Plating :

Gold

Product Type :

Standard Circular Connector

Ingress Protection :

IP68 - Dust Tight, Waterproof

Termination :

Screw

Shell Size, MIL :

-

Voltage Rating :

-

Manufacturer :

Amphenol

Mounting Style :

CABLE

Insert Material :

Polyamide (PA), Nylon, Glass Filled

Contact Material :

COPPER ALLOY

Applications :

-

Cable Opening :

0.157" ~ 0.315" (4.00mm ~ 8.00mm)

Fastening Type :

Push-Pull

Mounting Feature :

-

Current Rating (Amps) :

5A

Orientation :

Keyed
