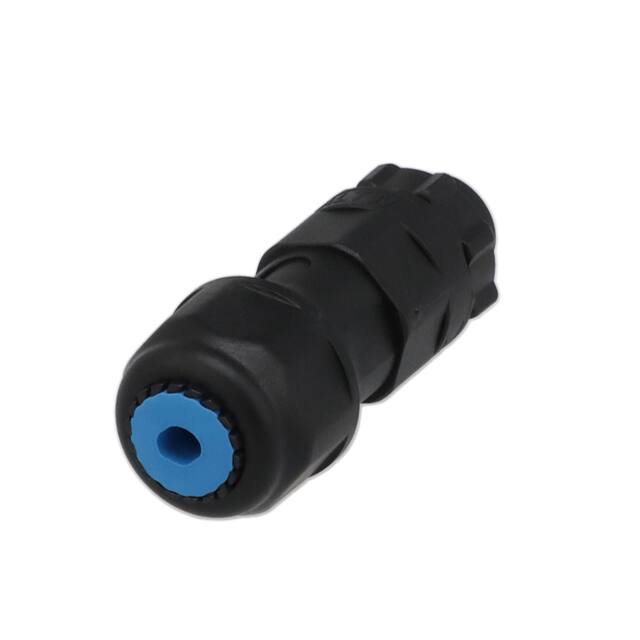

AD-03BMMB-QL8AP0

Manufacturer :

Amphenol LTW

Product Category :

Circular Connector Assemblies

Termination :

Screw

Manufacturer :

Amphenol

Mounting Type :

Free Hanging (In-Line)

Shell Size :

-

Package :

Bag

Primary Material :

-

Current Rating (Amps) :

5A

Brand :

Amphenol LTW

Ingress Protection :

IP68 - Dust Tight, Waterproof

Shell Finish :

-

Mating Style :

Latch Lock

Orientation :

Keyed

Shell Size - Insert :

A-3

Housing Gender :

Male

Termination Style :

Screw

Backshell Material, Plating :

Thermoplastic

Cable Opening :

0.157" ~ 0.315" (4.00mm ~ 8.00mm)

Material Flammability Rating :

-

RoHS :

Details

IP Rating :

IP68

Contact Material :

COPPER ALLOY

Shell Size, MIL :

-

Contact Finish - Mating :

Gold

Product :

Connectors

Color :

Black

Shell Material :

-

Base Product Number :

AD-03BMMB

Flammability Rating :

UL 94 V-0

Number of Positions :

3

Accessory Type :

-

Contact Plating :

Gold

Product Category :

Standard Circular Connector

Series :

X-Lok

Number of Contacts :

3

Current Rating :

5 A

Applications :

-

Product Type :

Standard Circular Connector

Voltage Rating :

-

Mounting Feature :

-

Operating Temperature :

-40°C ~ 105°C

Mating Cycles :

1000 Cycle

Fastening Type :

Push-Pull

Contact Gender :

Pin (Male)

Contact Finish Thickness - Mating :

-

Connector Type :

Receptacle, Male Pins

Subcategory :

Circular Connectors

Product Status :

Active

Insert Material :

Polyamide (PA), Nylon, Glass Filled

Features :

Backshell, Coupling Nut

Mounting Style :

CABLE

Mounting Angle :

Straight

Shielding :

Unshielded
