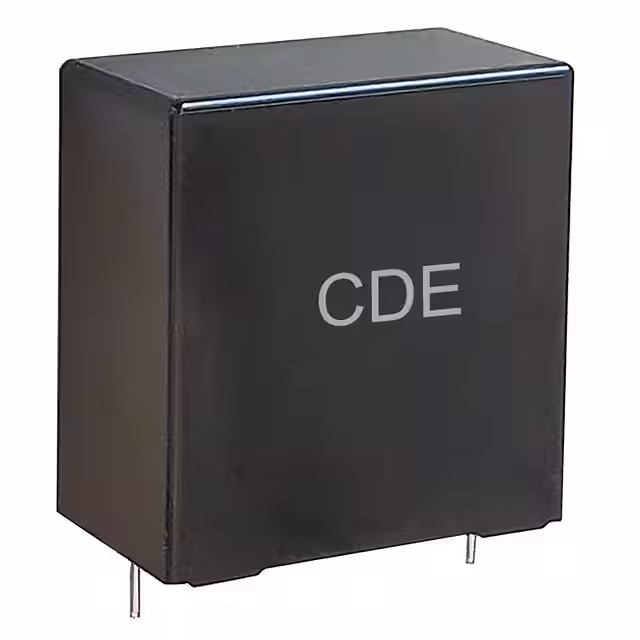

ALH106K161A072

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Termination Style :

Snap in

Product Status :

Active

Product Type :

Film Capacitors

Height :

18 mm

Capacitance :

10 µF

Series :

ALH

Type :

Power Film Capacitors

Voltage Rating - DC :

-

Tolerance :

±10%

Applications :

Automotive; EMI, RFI Suppression

Product Category :

Film Capacitors

Minimum Operating Temperature :

- 40 C

Dielectric :

Polypropylene (PP)

ESR (Equivalent Series Resistance) :

6.8 MOhms

Voltage Rating - AC :

160V

Width :

32 mm

Termination :

PC Pins

Features :

85C/85% Humidity

Package :

Bulk

Manufacturer :

Cornell Dubilier

Packaging :

Plastic UL94V-0

Maximum Operating Temperature :

+ 105 C

Size / Dimension :

1.260" L x 0.709" W (32.00mm x 18.00mm)

Operating Temperature :

-40°C ~ 105°C

Voltage :

160

Dielectric Material :

Polypropylene (PP)

Length :

33 mm

Product :

General Film Capacitors

Package / Case :

Radial

Number of Pins :

2 Pin

Height - Seated (Max) :

1.331" (33.80mm)

RoHS :

Y

Lead Style :

Straight

Lead Diameter :

0.8 mm

Ratings :

AEC-Q200

Brand :

Cornell Dubilier - CDE

Mounting Type :

Through Hole

ESR :

6.8mOhm

Subcategory :

Capacitors

Lead Spacing :

1.083" (27.50mm)
