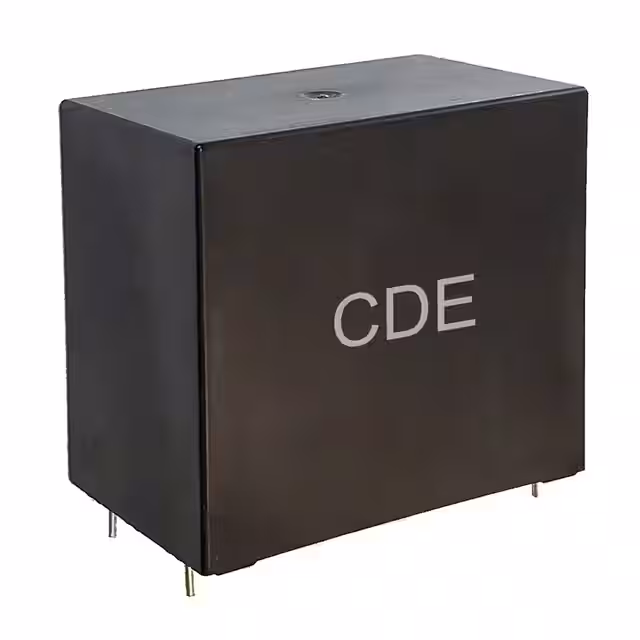

ALH106K451C084

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Number of Pins :

4 Pin

Mounting Type :

Through Hole

Applications :

Automotive; EMI, RFI Suppression

Maximum Operating Temperature :

+ 105 C

Packaging :

Plastic UL94V-0

ESR (Equivalent Series Resistance) :

6.6 mOhms

Height - Seated (Max) :

2.008" (51.00mm)

Voltage :

450

Voltage Rating - DC :

-

Lead Diameter :

1.2 mm

Product :

General Film Capacitors

Ratings :

AEC-Q200

Lead Spacing :

2.067" (52.50mm)

Operating Temperature :

-40°C ~ 105°C

Diameter :

-

Size / Dimension :

2.264" L x 1.378" W (57.50mm x 35.00mm)

Manufacturer :

Cornell Dubilier

Product Length :

57.5mm

Subcategory :

Capacitors

Minimum Operating Temperature :

- 40 C

Package :

Bulk

ESR :

6.6mOhm

Features :

85C/85% Humidity

Series :

ALH

Product Height :

50mm

Voltage Rating - AC :

450V

Tolerance :

±10%

RMS Current (Irms) :

14A

Height :

35 mm

Product Status :

Active

Product Type :

Film Capacitors

Type :

Power Film Capacitors

Capacitance :

10 µF

Lead Style :

Straight

Ripple Current :

-

Dielectric Material :

Polypropylene (PP)

Termination :

PC Pins

RoHS :

Y

Length :

57.5 mm

Brand :

Cornell Dubilier - CDE

Dielectric :

Polypropylene (PP)

Product Width :

35mm

Width :

50 mm

Product Category :

Film Capacitors

Package / Case :

Radial - 4 Leads

Qualification :

AEC-Q200

Termination Style :

Snap in

Capacitance Tolerance :

± 10%
