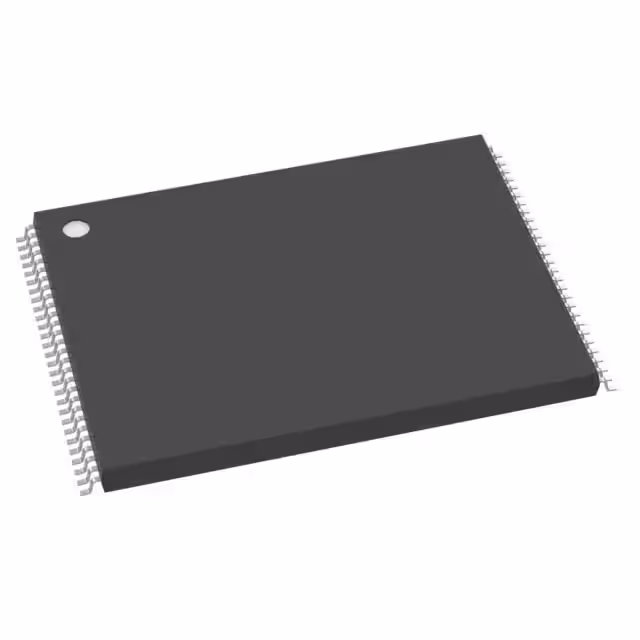

AS29CF160T-55TIN

Manufacturer :

Alliance Memory, Inc.

Product Category :

Memory

Standby Current-Max :

0.00015A

Programming Voltage :

5V

Supply Voltage :

5V

Common Flash Interface :

yes

Memory Format :

Flash

Reverse Pinout :

No

Memory Type :

Non-Volatile

Number of Functions :

1

Sector Size :

16K32K64K

Number of Terminations :

48

Operating Temperature :

-40°C~85°C TA

Ready/Busy :

yes

Number of Sectors/Size :

1131

Operating Mode :

ASYNCHRONOUS

Voltage - Supply :

4.5V~5.5V

Memory Interface :

Parallel

Height Seated (Max) :

1.2mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Write Cycle Time - Word, Page :

55ns

Toggle Bit :

yes

Boot Block :

BOTTOM/TOP

Surface Mount :

yes

Alternate Memory Width :

8

Access Time (Max) :

55 ns

Data Polling :

yes

Factory Lead Time :

8 Weeks

Endurance :

100000 Write/Erase Cycles

RoHS Status :

ROHS3 Compliant

Memory Width :

16

JESD-30 Code :

R-PDSO-G48

Supply Voltage-Max (Vsup) :

5.5V

Mounting Type :

Surface Mount

Data Retention Time-Min :

20

Organization :

1MX16

Packaging :

Tray

Terminal Pitch :

0.5mm

Supply Voltage-Min (Vsup) :

4.5V

Memory Size :

16Mb 2M x 8 1M x 16

Width :

12mm

Memory Density :

16777216 bit

Package / Case :

48-TFSOP (0.724, 18.40mm Width)

Terminal Position :

Dual

Length :

18.4mm
