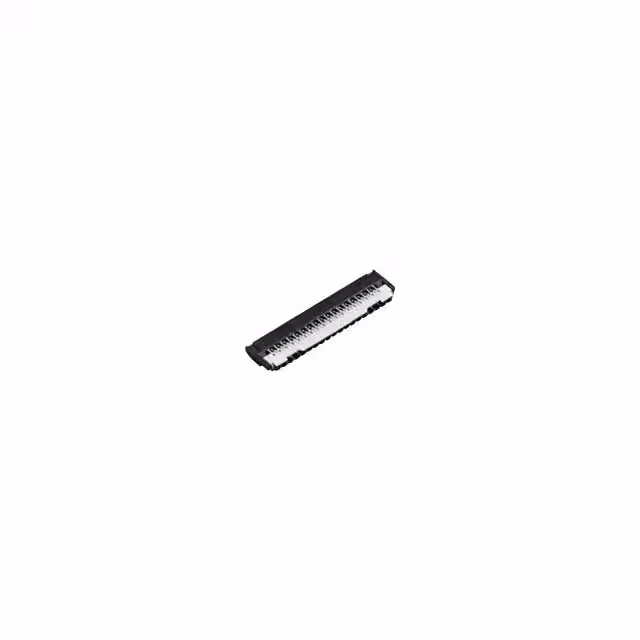

AYF314515

Manufacturer :

Panasonic

Product Category :

Unclassified

HTS Code :

8536.69.40.51

Number of Contacts :

45(POS)

Mounting Style :

Surface Mount

Contact Resistance Max :

80(mohm)

Contact Plating :

Gold Over Nickel

Manufacturer :

Panasonic Electronic Components

Current Rating (Max) :

0.2/Contact(A)

Terminal Pitch :

0.3 mm

Max Voltage Rating (DC) :

5.05 kV

Body Orientation :

Straight

Total Number of Contacts :

45

Product Length (mm) :

15.55(mm)

Type :

FPC Connector

ECCN Code :

EAR99

Max Operating Temperature :

85 °C

Packaging :

Tape and Reel

Additional Feature :

LOW PROFILE

Min Operating Temperature :

-55 °C

Contact Material :

COPPER ALLOY

Contact Gender :

F

Mounting Type :

BOARD

Product Status :

Active

Mixed Contacts :

No

UL Flammability Code :

94V-0

Contact Resistance :

80 mΩ

JESD-609 Code :

e4

Number of Positions :

45

MIL Conformance :

No

Contact Finish Termination :

Gold Over Nickel

Termination Method :

Solder

Connector Type :

FFC/FPC CONNECTOR

Pitch :

300 µm

Option :

GENERAL PURPOSE

Orientation :

Straight

Voltage Rating :

50 V

Current Rating :

200 mA

Operating Temp Range :

-55C to 85C

Mount :

Surface Mount

Contact Location :

BOTTOM

Housing Material :

Polymer

Pitch (mm) :

0.3(mm)

Termination Type :

Surface Mount

Reach Compliance Code :

Unknown

Number of Contact Rows :

1

RoHS :

Compliant

Product Height (mm) :

0.9(mm)

DIN Conformance :

No

Product Depth (mm) :

3.2(mm)

Filter Feature :

No

Voltage Rating Max :

50VDC/50VAC

Series :

*

Termination :

SMD/SMT

IEC Conformance :

No

Package :

Bulk
