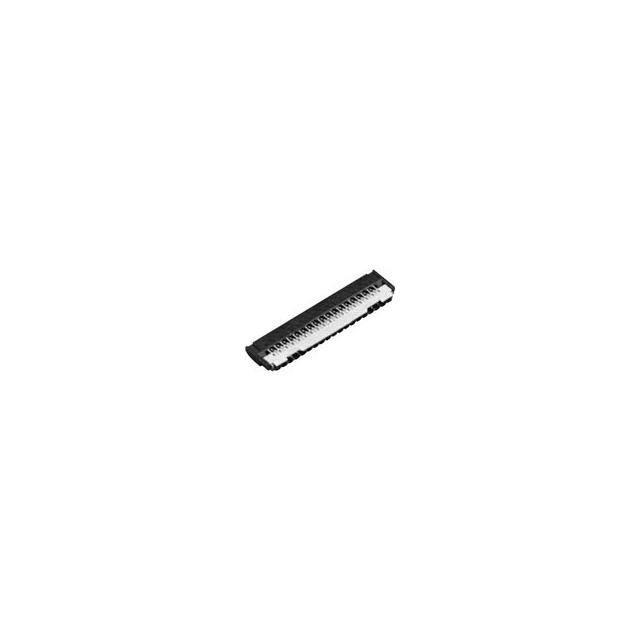

AYF324515

Manufacturer :

Panasonic

Product Category :

Unclassified

Additional Feature :

LOW PROFILE

Series :

*

Current Rating :

200 mA

Product Status :

Active

Mounting Type :

BOARD

Contact Resistance Max :

80(mohm)

Contact Finish Termination :

Gold Over Nickel

Voltage Rating :

50 V

Reach Compliance Code :

Unknown

Mounting Style :

Surface Mount

Total Number of Contacts :

45

Product Depth (mm) :

3.2(mm)

MIL Conformance :

No

Pitch :

600 µm

Contact Location :

BOTTOM

Radiation Hardening :

No

Termination Type :

Surface Mount

Packaging :

Box

Filter Feature :

No

Contact Plating :

Gold

Number of Positions :

45

Pitch (mm) :

0.3(mm)

Product Height (mm) :

0.9(mm)

Number of Contact Rows :

2

Connector Type :

FFC/FPC CONNECTOR

Terminal Pitch :

0.3 mm

RoHS :

Compliant

Contact Resistance :

80 mΩ

Product Length (mm) :

15.55(mm)

Type :

FFC/FPC CONNECTOR

JESD-609 Code :

e4

Termination Method :

Solder

Manufacturer :

Panasonic Electronic Components

UL Flammability Code :

94V-0

Body Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Number of Rows :

1

Operating Temp Range :

-55C to 85C

Orientation :

RIGHT ANGLE

Package :

Bulk

Termination :

SMD/SMT

Mixed Contacts :

No

Mount :

Surface Mount

IEC Conformance :

No

Min Operating Temperature :

-55 °C

Voltage Rating Max :

50VDC/50VAC

Max Voltage Rating (DC) :

5.05 kV

Contact Gender :

SKT

Contact Material :

COPPER ALLOY

Max Operating Temperature :

85 °C

Gender :

Receptacle

DIN Conformance :

No

Current Rating (Max) :

0.2/Contact(A)

Housing Material :

Polymer

Number of Contacts :

45(POS)
