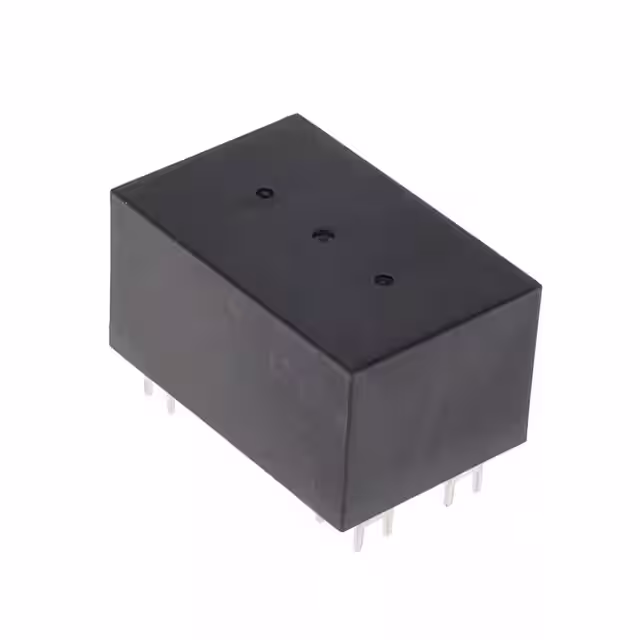

AZ2850-2A-24AE

Manufacturer :

American Zettler

Product Category :

Power Relays, Over 2 Amps

Package :

Tray

Must Operate Voltage :

19.2 VAC

Contact (AC) Max Power Rating R Load :

831

Termination Type :

Solder

Weight :

86 g

Seal Rating :

Sealed - Fully

Relay Type :

GENERAL PURPOSE

Features :

-

Termination Style :

PC Pin

Contact/Output Supply Type :

AC/DC

Terminal Length :

0.0084 inch

Reach Compliance Code :

Compliant

Relay Action :

LATCHED

Manufacturer :

American ZETTLER Inc

Coil Type :

Non Latching

Coil Current :

672.3 mA

Contact Material :

Silver Cadmium Oxide (AgCdO)

Relay Function :

DPST

Body Length or Diameter :

52.6 mm

Operating Temperature :

-40°C ~ 65°C

Dielectric Strength Between Coil and Contacts :

4000 Vrms

Product Status :

Active

Contact Resistance :

50 mΩ

Coil Resistance :

35.7 Ohms

End Contact Material :

Silver Cadmium Oxide

ECCN Code :

EAR99

Dielectric Strength Between Open Contacts :

1500 Vrms

Switching Voltage :

600VAC, 30VDC - Max

Coil Voltage(AC)-Max :

31.2 V

Coil/Input Supply Type :

AC

Terminal Finish :

Tin

Release Time :

10 ms

Sealing :

Epoxy

Coil Insulation :

Class F

Operate Time :

15 ms

Physical Dimension :

52.6mm x 34.8mm x 26.4mm

JESD-609 Code :

e3

Body Height :

26.4 mm

Mounting Type :

Through Hole

Contact Form :

DPST-NO (2 Form A)

Body Breadth :

34.8 mm

Must Release Voltage :

4.8 VAC

Reference Standard :

UL; VDE

Relay Form :

2 FORM A

Contact Rating (Current) :

40 A

Insulation Resistance :

1000000000 Ω

Coil Operate Voltage(AC) :

19.2 V

PCB Hole Count :

16

Coil Voltage :

24VAC

Series :

-

Electrical Life :

100000 Cycle(s)

Number of Terminals :

16
