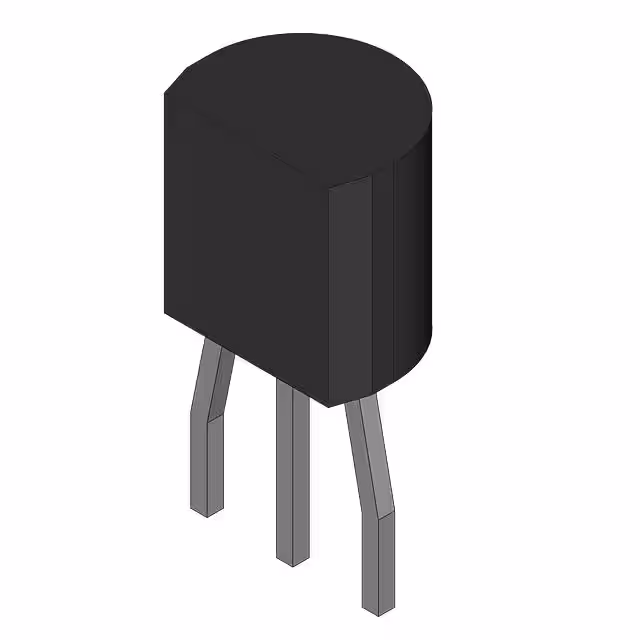

BC237B

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Single

Mounting Type :

Through Hole

Transistor Type :

NPN

Operating Temperature :

-65°C ~ 150°C (TJ)

Collector-Emitter Voltage-Max :

45V

Power - Max :

300mW

Configuration :

Single

Transition Frequency :

150MHz

Polarity/Channel Type :

NPN

Terminal Form :

THROUGH-HOLE

JESD-30 Code :

O-PBCY-T3

DC Current Gain-Min (hFE) :

180

Collector Current-Max (IC) :

0.1A

RoHS Status :

Non-RoHS Compliant

Voltage - Collector Emitter Breakdown (Max) :

50V

Transistor Element Material :

SILICON

Package / Case :

TO-226-3, TO-92-3 (TO-226AA)

Supplier Device Package :

TO-92

Frequency - Transition :

150MHz

Current - Collector (Ic) (Max) :

100mA

Operating Temperature (Max) :

150°C

Packaging :

Bulk

JEDEC-95 Code :

TO-92

ECCN Code :

EAR99

Qualification Status :

Not Qualified

Surface Mount :

No

Pin Count :

3

Current - Collector Cutoff (Max) :

15nA

Power Dissipation-Max (Abs) :

0.35W

Series :

--

DC Current Gain (hFE) (Min) @ Ic, Vce :

180 @ 2mA, 5V

Reach Compliance Code :

not_compliant

Vce Saturation (Max) @ Ib, Ic :

600mV @ 5mA, 100mA

Terminal Position :

BOTTOM

JESD-609 Code :

e0

Terminal Finish :

Tin/Lead (Sn/Pb)

Transistor Application :

AMPLIFIER

Number of Terminals :

3

Number of Elements :

1

HTS Code :

8541.21.00.75
