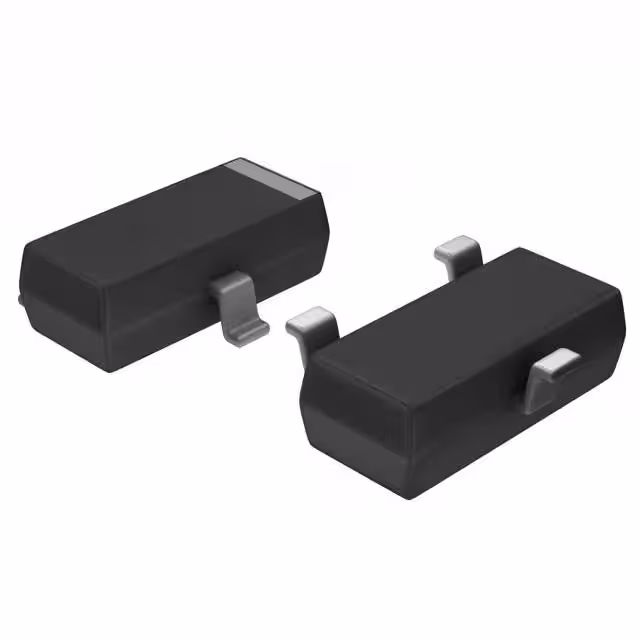

BC850A-AQ

Manufacturer :

Diotec Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Single

Supplier Package :

SOT-23

Minimum Operating Temperature (°C) :

-55

Category :

Bipolar Small Signal

HTS :

8541.21.00.75

Maximum Operating Temperature (°C) :

150

Maximum Emitter Base Voltage (V) :

5

PCB changed :

3

ECCN (US) :

EAR99

Mounting :

Surface Mount

Lead Shape :

Gull-wing

Maximum Collector Cut-Off Current (nA) :

15

Pin Count :

3

Package Length :

2.9

Standard Package Name :

SOT

Maximum Base Emitter Saturation Voltage (V) :

0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA

Maximum Collector-Emitter Saturation Voltage (V) :

@10mA|0.6@5mA@100mA

Package Width :

1.3

Configuration :

Single

PPAP :

yes

Maximum Collector Base Voltage (V) :

50

Maximum DC Collector Current (A) :

0.1

Maximum Transition Frequency (MHz) :

300(Typ)

Type :

NPN

Number of Elements per Chip :

1

Maximum Collector-Emitter Voltage (V) :

45

Minimum DC Current Gain :

110@2mA@5V

Automotive :

yes

Supplier Temperature Grade :

Automotive

Maximum Power Dissipation (mW) :

250

EU RoHS :

Compliant
