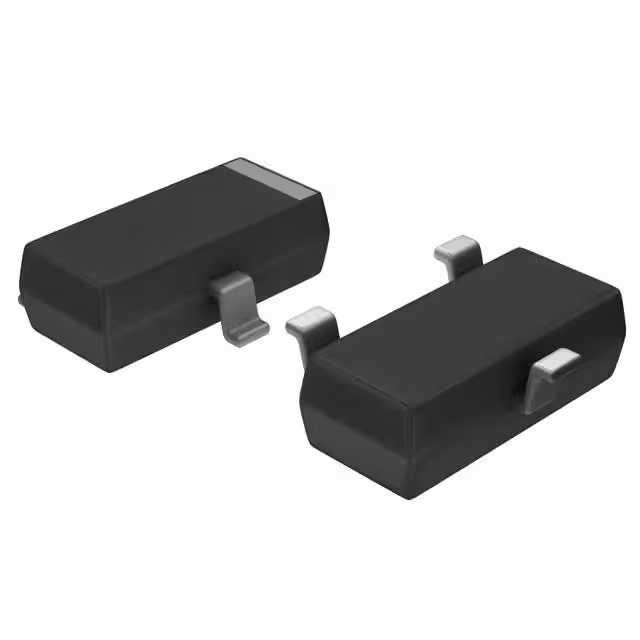

BCX70H-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Transistors - Bipolar (BJT) - Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency - Transition :

250MHz

Pin Count :

3

Voltage - Collector Emitter Breakdown (Max) :

45V

Transistor Type :

NPN

Turn Off Time-Max (toff) :

800ns

Qualification Status :

Not Qualified

Polarity/Channel Type :

NPN

Terminal Finish :

Matte Tin (Sn)

DC Current Gain (hFE) (Min) @ Ic, Vce :

180 @ 2mA 5V

Mounting Type :

Surface Mount

Package / Case :

TO-236-3, SC-59, SOT-23-3

Packaging :

Tape and Reel (TR)

Vce Saturation (Max) @ Ib, Ic :

550mV @ 1.25mA, 50mA

Transistor Application :

SWITCHING

Number of Elements :

1

JESD-30 Code :

R-PDSO-G3

Peak Reflow Temperature (Cel) :

260

Terminal Position :

Dual

Additional Feature :

LOW NOISE

Operating Temperature :

-55°C~150°C TJ

Power - Max :

250mW

Number of Terminations :

3

Terminal Form :

Gull wing

Configuration :

Single

Transition Frequency :

250MHz

RoHS Status :

RoHS Compliant

Current - Collector (Ic) (Max) :

200mA

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Surface Mount :

yes

JESD-609 Code :

e3

Power Dissipation-Max (Abs) :

0.25W

Time@Peak Reflow Temperature-Max (s) :

10

Current - Collector Cutoff (Max) :

20nA ICBO

Turn On Time-Max (ton) :

150ns

Pbfree Code :

yes

Transistor Element Material :

SILICON
