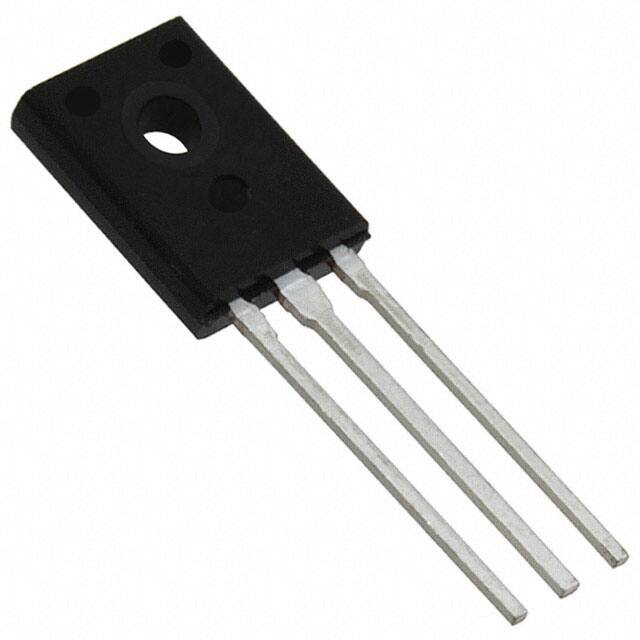

BD233-BP
Or copy the link below:
- Mfr.Part #
- BD233-BP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-225AA, TO-126-3
- Datasheet
- Download
- Description
- TRANS NPN 45V 2A TO126
- Stock
- 22,941
- In Stock ：
- 22,941
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Qualification Status :
- Not Qualified
- Power - Max :
- 1.25W
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 40 @ 150mA 2V
- JESD-609 Code :
- e3
- Terminal Position :
- Single
- Transition Frequency :
- 3MHz
- ECCN Code :
- EAR99
- Operating Temperature :
- 150°C TJ
- Polarity/Channel Type :
- NPN
- Package / Case :
- TO-225AA, TO-126-3
- Surface Mount :
- No
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Number of Terminations :
- 3
- Pin Count :
- 3
- Transistor Type :
- NPN
- RoHS Status :
- RoHS Compliant
- Current - Collector (Ic) (Max) :
- 2A
- Terminal Finish :
- Matte Tin (Sn)
- Number of Elements :
- 1
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Configuration :
- Single
- JESD-30 Code :
- R-PSFM-T3
- Pbfree Code :
- yes
- Current - Collector Cutoff (Max) :
- 100μA ICBO
- Mounting Type :
- Through Hole
- Frequency - Transition :
- 3MHz
- Vce Saturation (Max) @ Ib, Ic :
- 600mV @ 100mA, 1A
- Transistor Element Material :
- SILICON
- Voltage - Collector Emitter Breakdown (Max) :
- 45V
- Reach Compliance Code :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- BD233-BP
NPN 150°C TJ 100μA ICBO 1 Elements 3 Terminations SILICON NPN TO-225AA, TO-126-3 Through Hole
BD233-BP Overview
In this device, the DC current gain is 40 @ 150mA 2V, which is calculated by taking the ratio of the base current to collector current and dividing transistor by two.Saturation of VCE means Ic is at its maximum value (saturated), and VCE saturation (Max) is 600mV @ 100mA, 1A.3MHz is present in the transition frequency.The device exhibits a collector-emitter breakdown at 45V.
BD233-BP Features
the DC current gain for this device is 40 @ 150mA 2V
the vce saturation(Max) is 600mV @ 100mA, 1A
a transition frequency of 3MHz
BD233-BP Applications
There are a lot of Micro Commercial Co
BD233-BP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
