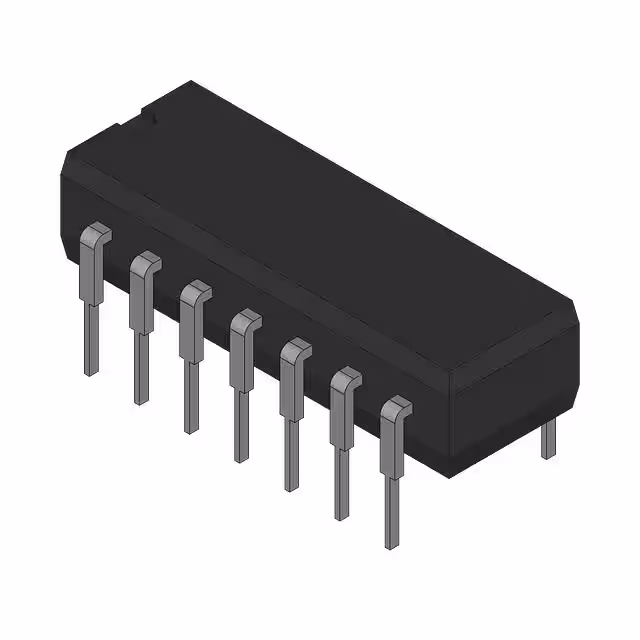

CD4068BEE4

Manufacturer :

Texas Instruments

Product Category :

Gates and Inverters

Input Type :

CMOS

Operating Supply Current :

15 uA

Operating Supply Voltage :

10 V

Pin Count :

14

Logic IC Type :

AND/NAND Gate

Propagation Delay (tpd) :

300 ns

Package Shape :

RECTANGULAR

Terminal Pitch :

2.54 mm

JESD-609 Code :

e4

Manufacturer :

Texas Instruments

Thickness :

3.9 mm

Supply Voltage-Min (Vsup) :

3 V

Brand :

Texas Instruments

Length :

19.3 mm

Reach Compliance Code :

Compliant

Max I(ol) :

0.0068 A

Output Type :

SINGLE-ENDED

Factory Lead Time :

1 Week

Schmitt Trigger :

No

Operating Temperature :

-55°C ~ 125°C

Logic Type :

AND/NAND Gate

Max Supply Voltage :

18 V

Mounting Style :

SMD/SMT

Max Operating Temperature :

125 °C

Low Level Output Current :

4.2 mA

JESD-30 Code :

R-PDIP-T14

Current - Output High, Low :

6.8mA, 6.8mA

Power Supply Current-Max (ICC) :

0.03 mA

Product Status :

Active

Number of Input Lines :

8

Family :

4000/14000/40000

Supply Voltage-Max (Vsup) :

18 V

Height :

5.08 mm

RoHS :

Compliant

Product Category :

Logic Gates

Function :

AND/NAND

Number of Circuits :

1

Schmitt Trigger Input :

No

Number of Inputs :

8

Min Operating Temperature :

-55 °C

Width :

6.35 mm

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Package / Case :

14-DIP (0.300, 7.62mm)

HTS Code :

8542.39.00.01

Number of Elements :

1

Propagation Delay :

300 ns

Number of Bits :

1

Packing Method :

Tube

Terminal Position :

Dual

Minimum Operating Temperature :

- 55 C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

THROUGH-HOLE

Supplier Device Package :

14-PDIP

Weight :

927.99329 mg

Product Type :

Logic Gates

Product :

Configurable Multiple-Function Gate

Package :

Tube

Qualification Status :

Not Qualified

Surface Mount :

No

Min Supply Voltage :

3 V

Number of Outputs :

2

Operating Temperature Range :

- 55 C to + 125 C

Number of Output Lines :

2

Brand Name :

Texas

Mount :

Through Hole

Lead Free :

Lead Free

Voltage - Supply :

3V ~ 18V

Logic Function :

AND, NAND

Power Supplies :

5/15 V

Technology :

CMOS

Number of Terminals :

14

Lifecycle Status :

Production (Last Updated: 5 days ago)

Turn-On Delay Time :

110 ns

Contact Plating :

Gold

Number of Gates :

1

Series :

4000B

Packaging :

Rail/Tube

High Level Output Current :

-4.2 mA

Temperature Grade :

Military

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Seated Height-Max :

5.08 mm

Subcategory :

Logic ICs

Maximum Operating Temperature :

+ 125 C

Logic Family :

CD4000

Quiescent Current :

5 µA

Number of Pins :

14

Mounting Type :

Through Hole

Number of Functions :

1

Output Current :

6.8 mA
