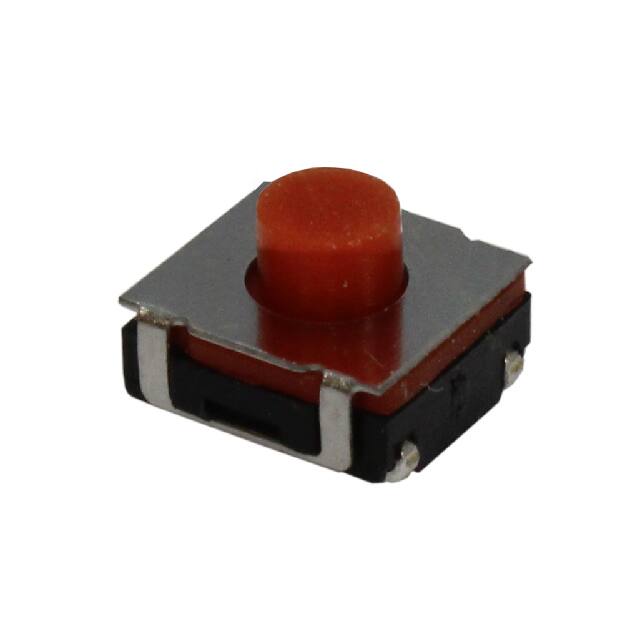

CS33043.4J

Manufacturer :

CIT Relay and Switch

Product Category :

Mounting Type :

Surface Mount

Contact Rating @ Voltage :

0.05A @ 50VDC

Actuator Height off PCB, Vertical :

3.40mm

Ingress Protection :

-

Actuator Material :

Rubber

Features :

-

Switch Travel :

0.25mm

Outline :

6.40mm x 6.25mm

Illumination :

Non-Illuminated

Switch Function :

Off-Mom

Illumination Type, Color :

-

Mechanical Life :

-

Illumination Voltage (Nominal) :

-

Actuator Type :

Standard

Series :

CS3304

Circuit :

SPST-NO

Actuator Orientation :

Top Actuated

Actuator Length, Right Angle :

-

Operating Force :

160gf

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Status :

Active

Termination Style :

J Lead

Operating Temperature :

-40°C ~ 85°C
