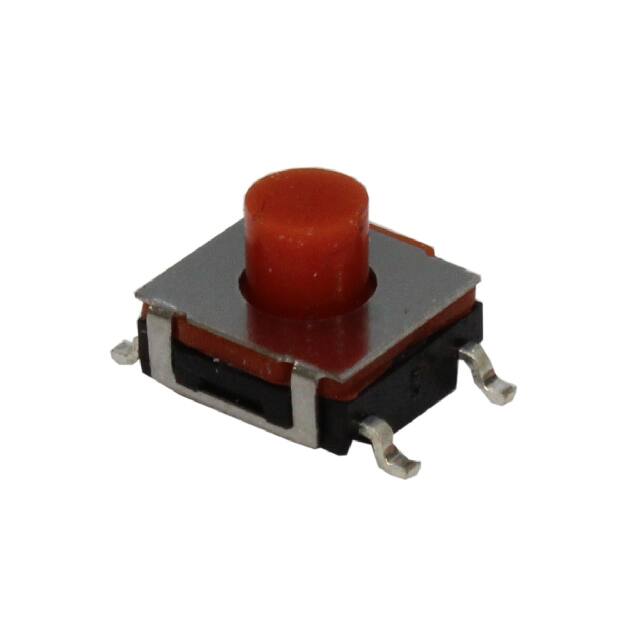

CS33045.1G

Manufacturer :

CIT Relay and Switch

Product Category :

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Ingress Protection :

-

Illumination Voltage (Nominal) :

-

Actuator Material :

Rubber

Operating Force :

160gf

Illumination Type, Color :

-

Switch Travel :

0.25mm

Illumination :

Non-Illuminated

Switch Function :

Off-Mom

Series :

CS3304

Circuit :

SPST-NO

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 85°C

Actuator Length, Right Angle :

-

Outline :

6.40mm x 6.25mm

Features :

-

Actuator Height off PCB, Vertical :

5.10mm

Mechanical Life :

-

Termination Style :

Gull wing

Product Status :

Active

Actuator Type :

Standard

Contact Rating @ Voltage :

0.05A @ 50VDC

Actuator Orientation :

Top Actuated
