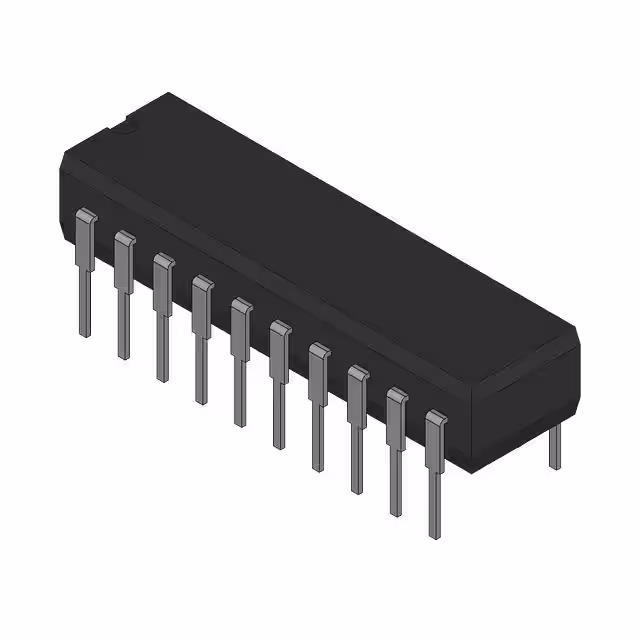

CS5503-BP

Manufacturer :

Cirrus Logic

Product Category :

Analog to Digital Converters (ADC)

Number of Analog In Channels :

1

Analog Input Voltage-Min :

-2.5V

Height Seated (Max) :

4.57mm

Qualification Status :

Not Qualified

Surface Mount :

No

Temperature Grade :

Industrial

Terminal Position :

Dual

ECCN Code :

EAR99

Output Format :

Serial

Sampling Rate :

4 ksps

Power Supplies :

+-5V

Number of Pins :

20

Converter Type :

ADC, DELTA-SIGMA

Length :

25.4mm

Operating Temperature (Max) :

85°C

Terminal Form :

THROUGH-HOLE

Resolution :

2.5 B

Peak Reflow Temperature (Cel) :

225

Pin Count :

20

JESD-609 Code :

e0

Output Bit Code :

BINARY

Number of Bits :

20

Package / Case :

PDIP

Number of Circuits :

1

Number of Functions :

1

RoHS Status :

RoHS Compliant

Supply Voltage :

5V

Number of Terminations :

20

Analog Input Voltage-Max :

2.5V

Terminal Pitch :

2.54mm

Negative Supply Voltage-Nom :

-5V

Operating Temperature (Min) :

-40°C

Time@Peak Reflow Temperature-Max (s) :

30

Terminal Finish :

Tin/Lead (Sn/Pb)

Width :

7.62mm
