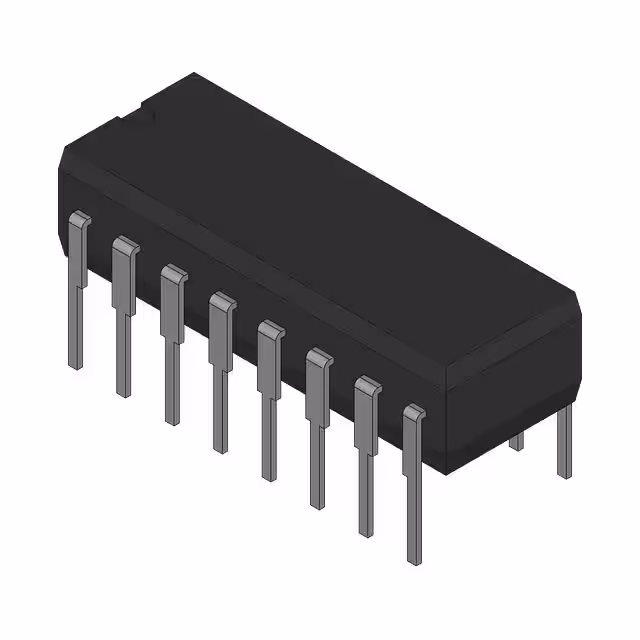

CS5509-AP

Manufacturer :

Cirrus Logic

Product Category :

Analog to Digital Converters (ADC)

Package / Case :

PDIP

Conversion Rate :

200 sps

Pin Count :

16

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

30

Min Supply Voltage :

4.5V

Resolution :

2 B

Max Supply Voltage :

5.5V

Differential Nonlinearity :

0.5 LSB

Qualification Status :

Not Qualified

Width :

7.11mm

Power Dissipation :

1.7mW

Number of Pins :

16

Length :

20.32mm

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Terminations :

16

Max Operating Temperature :

85°C

Power Dissipation-Max :

2.25mW

Number of Analog In Channels :

1

Supply Voltage :

5V

Height :

4.95mm

ECCN Code :

EAR99

Sampling Rate :

200 sps

Polarity :

Bipolar, Unipolar

Output Bit Code :

BINARY, OFFSET BINARY

Number of Bits :

16

Output Format :

Serial

Terminal Pitch :

2.54mm

Number of Analog Inputs :

1

Number of Functions :

1

Terminal Position :

Dual

Min Operating Temperature :

-40°C

Supply Type :

Analog, Digital

Operating Supply Voltage :

5V

Temperature Grade :

Industrial

Peak Reflow Temperature (Cel) :

225

Mount :

Through Hole

Converter Type :

ADC, DELTA-SIGMA

JESD-609 Code :

e0

Contact Plating :

Lead, Tin

Power Rating :

1.7mW
