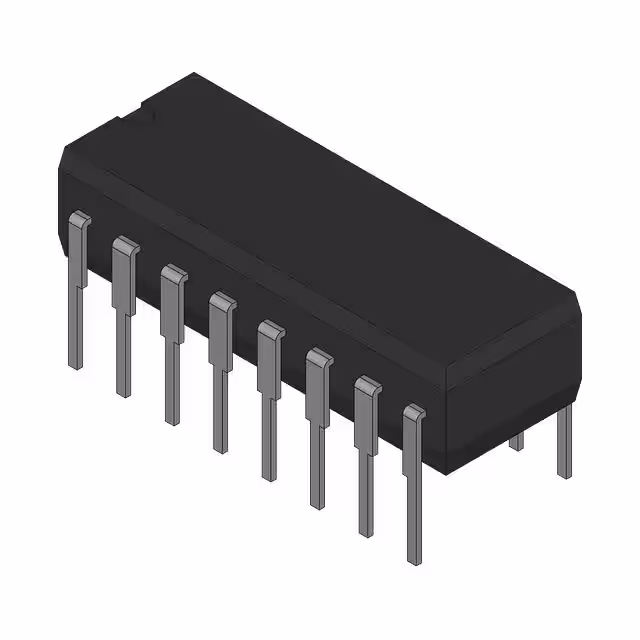

DG201ADK

Manufacturer :

Analog Devices, Inc.

Product Category :

Signal Switches, Multiplexers, Decoders

Operating Temperature (Min) :

-40°C

JESD-609 Code :

e0

Neg Supply Voltage-Min (Vsup) :

-4.5V

Surface Mount :

No

Qualification Status :

Not Qualified

Number of Channels :

1

Switching :

BREAK-BEFORE-MAKE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

4

Switch-off Time-Max :

450ns

Terminal Position :

Dual

Analog IC - Other Type :

SPST

RoHS Status :

Non-RoHS Compliant

HTS Code :

8542.39.00.01

Width :

7.62mm

Output :

SEPARATE OUTPUT

Reach Compliance Code :

not_compliant

Pin Count :

16

Neg Supply Voltage-Nom (Vsup) :

-15V

Seated Height-Max :

5.08mm

Supply Voltage-Max (Vsup) :

18V

Operating Temperature (Max) :

85°C

Pbfree Code :

No

Supply Voltage :

15V

Terminal Pitch :

2.54mm

Temperature Grade :

Industrial

Number of Terminals :

16

Supply Voltage-Min (Vsup) :

4.5V

Power Supplies :

+-15V

Switch-on Time-Max :

600ns

Off-state Isolation-Nom :

70 dB

Neg Supply Voltage-Max (Vsup) :

-18V

Terminal Finish :

TIN LEAD

Terminal Form :

THROUGH-HOLE

Normal Position :

NC

Time@Peak Reflow Temperature-Max (s) :

20

Peak Reflow Temperature (Cel) :

240

JESD-30 Code :

R-GDIP-T16

On-State Resistance (Max) :

200Ohm
