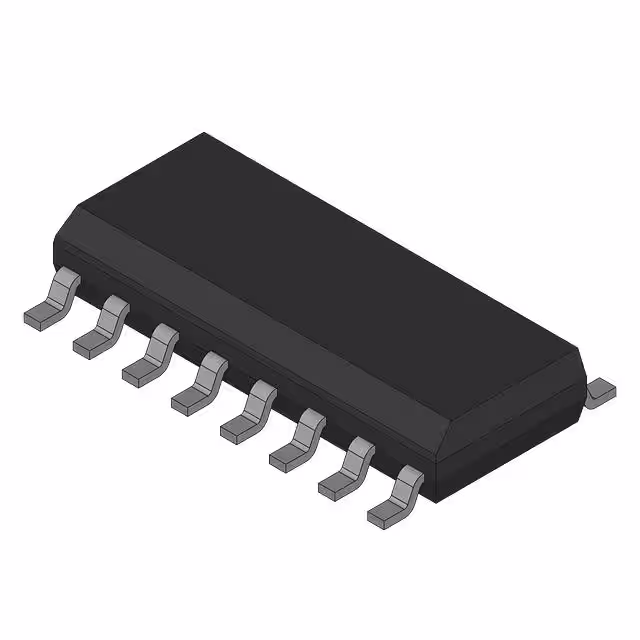

DG509AMY/PR

Manufacturer :

Analog Devices, Inc.

Product Category :

Signal Switches, Multiplexers, Decoders

Width :

3.9 mm

Seated Height-Max :

1.75 mm

Neg Supply Voltage-Min (Vsup) :

-4.5 V

Qualification Status :

Not Qualified

Number of Terminals :

16

Manufacturer :

Maxim Integrated Products

Technology :

CMOS

Supply Voltage-Min (Vsup) :

4.5 V

On-state Resistance Match-Nom :

24 Ω

Pin Count :

16

HTS Code :

8542.39.00.01

Surface Mount :

yes

Number of Channels :

4

Switch-off Time-Max :

700 ns

Supply Voltage-Max (Vsup) :

18 V

Terminal Form :

Gull wing

Analog IC - Other Type :

DIFFERENTIAL MULTIPLEXER

Off-state Isolation-Nom :

68 dB

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Neg Supply Voltage-Max (Vsup) :

-18 V

JESD-30 Code :

R-PDSO-G16

Temperature Grade :

Military

Number of Functions :

1

Package Shape :

RECTANGULAR

Pbfree Code :

yes

Terminal Pitch :

1.27 mm

Neg Supply Voltage-Nom (Vsup) :

-15 V

Switch-on Time-Max :

1000 ns

Factory Lead Time :

18 Weeks

Length :

9.9 mm

Terminal Position :

Dual

Reach Compliance Code :

Compliant
