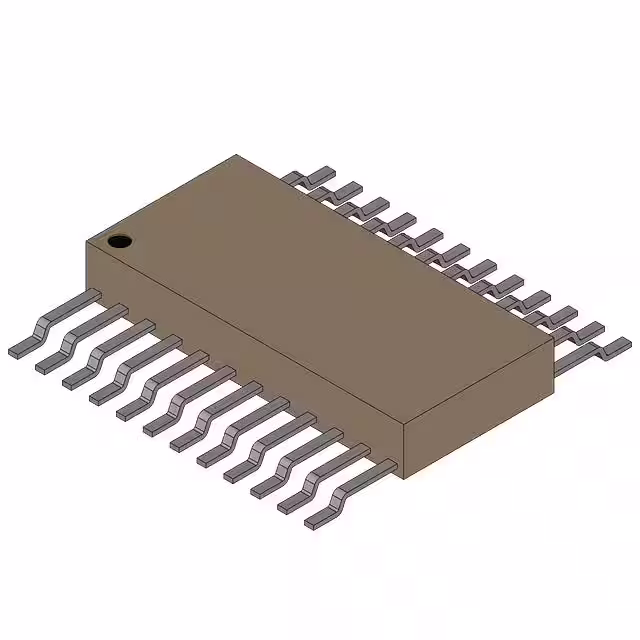

DM54150W/883

Manufacturer :

National Semiconductor

Product Category :

Signal Switches, Multiplexers, Decoders

JESD-609 Code :

e0

Pin Count :

24

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Length :

15.4305 mm

Technology :

TTL

Terminal Form :

Flat

Supply Voltage-Min (Vsup) :

4.5 V

Propagation Delay (tpd) :

20 ns

Number of Outputs :

1

Supply Voltage-Max (Vsup) :

5.5 V

Reach Compliance Code :

Unknown

Screening Level :

MIL-STD-883

JESD-30 Code :

R-GDFP-F24

Number of Terminals :

24

Logic IC Type :

Multiplexer

Temperature Grade :

Military

Package Shape :

RECTANGULAR

Terminal Pitch :

1.27 mm

Surface Mount :

yes

Number of Inputs :

16

Seated Height-Max :

2.286 mm

HTS Code :

8542.39.00.01

Terminal Finish :

TIN LEAD

Number of Functions :

1

Terminal Position :

Dual

Manufacturer :

Rochester Electronics LLC

Output Polarity :

INVERTED

Pbfree Code :

No

Family :

TTL/H/L
