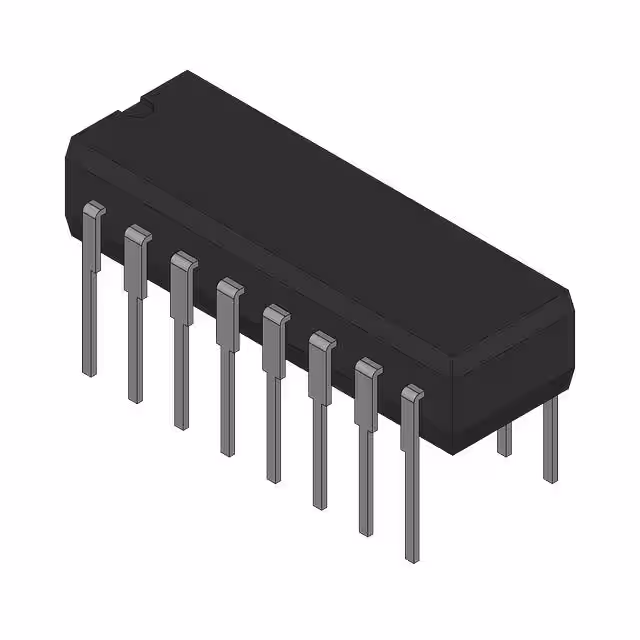

DM54153J/883
Or copy the link below:
- Mfr.Part #
- DM54153J/883
- Manufacturer
- National Semiconductor
- Package / Case
- Datasheet
- Download
- Description
- MUX, 4 LINE INPUT TTL
- Stock
- 107
- In Stock ：
- 107
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- National Semiconductor
- Product Category :
- Signal Switches, Multiplexers, Decoders
- Terminal Form :
- THROUGH-HOLE
- Manufacturer :
- Rochester Electronics LLC
- Length :
- 19.43 mm
- Output Polarity :
- TRUE
- Terminal Pitch :
- 2.54 mm
- Family :
- TTL/H/L
- Supply Voltage-Max (Vsup) :
- 5.5 V
- Number of Terminals :
- 16
- Reach Compliance Code :
- Unknown
- Seated Height-Max :
- 5.08 mm
- Supply Voltage-Min (Vsup) :
- 4.5 V
- JESD-30 Code :
- R-GDIP-T16
- Package Shape :
- RECTANGULAR
- Number of Inputs :
- 4
- Width :
- 7.62 mm
- Terminal Position :
- Dual
- Logic IC Type :
- Multiplexer
- Qualification Status :
- Not Qualified
- Surface Mount :
- No
- Technology :
- TTL
- Pin Count :
- 16
- Temperature Grade :
- Military
- Number of Functions :
- 2
- Number of Outputs :
- 1
- HTS Code :
- 8542.39.00.01
- Propagation Delay (tpd) :
- 34 ns
- Datasheets
- DM54153J/883
[Signal Switches, Multiplexers, Decoders] Overview
欢迎您了解由National Semiconductor制造的DM54153J/883型号的多路复用器（MUX）。这款多路复用器是一款性能可靠、稳定耐用的电子元器件，专为满足工业和商业领域中对高效信号切换和数据处理的需求而设计。
DM54153J/883采用TTL（晶体管—晶体管逻辑）技术，具有4路输入，并能够将其中一路输入选择性地输出到单一输出通道上。其可靠的性能和卓越的信号处理能力使其成为各种电子设备中不可或缺的组成部分。
无论您是寻找高性能的工业级信号切换解决方案，还是需要可靠的多路复用器来支持您的商业应用，DM54153J/883都是您的理想选择。
DM54153J/883 Features
- 四路输入多路复用器，可将其中一路输入输出到单一输出通道
- 采用TTL技术，保证稳定可靠的信号处理
- 广泛工作温度范围，适用于各种环境条件
- 紧凑的封装设计，便于集成到各种电路板和设备中
- 可靠耐用，长期稳定运行，减少维护和更换成本
DM54153J/883 Applications
- 工业自动化控制系统：DM54153J/883可用于工业控制系统中的信号切换和数据路由，确保生产线上的高效运行和稳定性。
- 通信设备：在通信设备中，DM54153J/883可用于信号选择和路由，帮助优化数据传输和通信质量。
- 测试和测量仪器：该多路复用器可用于测试和测量仪器中，用于信号采集和处理，确保准确可靠的测量结果。
- 数据采集系统：DM54153J/883可用于数据采集系统中，帮助管理多路信号输入，并将其转换为数字信号进行处理和分析。
