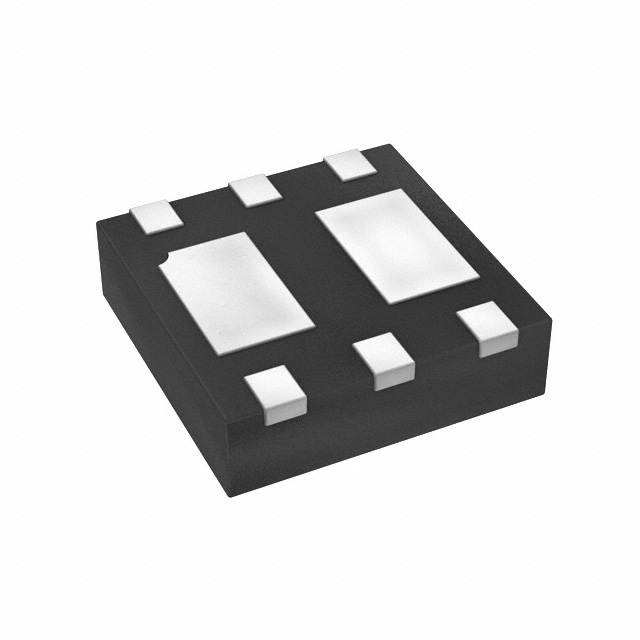

DMC2025UFDB-7

Manufacturer :

Diodes Incorporated

Product Category :

Transistors - FETs, MOSFETs - Arrays

Power - Max :

700mW Ta

Package / Case :

6-UDFN Exposed Pad

Mounting Type :

Surface Mount

Gate Charge (Qg) (Max) @ Vgs :

12.3nC @ 10V, 15nC @ 8V

RoHS Status :

ROHS3 Compliant

Rds On (Max) @ Id, Vgs :

25m Ω @ 4A, 4.5V, 75m Ω @ 2.9A, 4.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

30

FET Feature :

Standard

Peak Reflow Temperature (Cel) :

260

Input Capacitance (Ciss) (Max) @ Vds :

486pF @ 10V 642pF @ 10V

Vgs(th) (Max) @ Id :

1V @ 250μA, 1.4V @ 250μA

Drain to Source Voltage (Vdss) :

20V

Factory Lead Time :

23 Weeks

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

JESD-609 Code :

e4

Operating Temperature :

-55°C~150°C TJ

Packaging :

Tape and Reel (TR)

Current - Continuous Drain (Id) @ 25°C :

6A Ta 3.5A Ta

FET Type :

N and P-Channel Complementary
