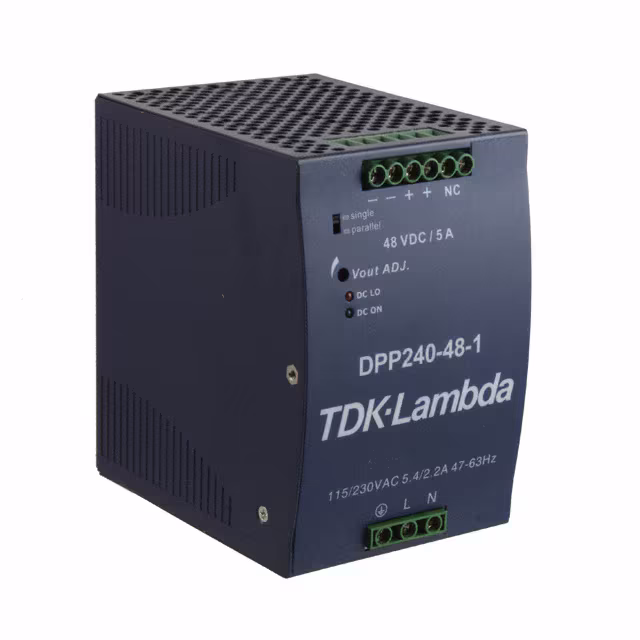

DPP240-48-1

Manufacturer :

TDK-Lambda, Inc.

Product Category :

Output Current :

5 A

Product Status :

Active

Maximum Output Power :

240 W

Series :

SXT324

Size / Dimension :

0.126 L x 0.098 W (3.20mm x 2.50mm)

Load Capacitance :

17pF

Package Shape :

RECTANGULAR

JESD-30 Code :

R-MXMA-X9

Number of Outputs :

1

Number of Terminals :

9

Efficiency (Main Output) :

90%

Minimum Isolation Voltage :

3000 Vdc

Mounting Type :

Surface Mount

Number of Functions :

1

Output Voltage-Min :

47 V

Protections :

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

Type :

MHz Crystal

ESR (Equivalent Series Resistance) :

70 Ohms

Width :

83 mm

Analog IC - Other Type :

AC-DC REGULATED POWER SUPPLY MODULE

Output Current-Max :

5 A

Length :

125 mm

Pin Count :

9

Input Frequency :

47 to 63 Hz

Height :

116 mm

Approvals :

CE, UL

Output Voltage-Max :

56 V

Terminal Form :

UNSPECIFIED

Reach Compliance Code :

Compliant

Trim/Adjustable Output :

yes

Terminal Position :

UNSPECIFIED

Frequency :

16 MHz

Total Power Output-Max :

240 W

Height - Seated (Max) :

0.031 (0.80mm)

Temperature Grade :

Other

Frequency Tolerance :

±20ppm

Package :

Bulk

Operating Temperature :

-30°C ~ 85°C

Package / Case :

4-SMD, No Lead

Frequency Stability :

±30ppm

Additional Feature :

IT ALSO OPERATE AT AC INPUT VOLTAGE FROM 186 TO 264VAC

Operating Mode :

Fundamental

Ripple Voltage (Main Out) :

0.03535 Vrms

Mounting :

DIN Rail

Surface Mount :

No

Input Voltage :

90 to 132/186 to 264 V

Manufacturer :

TDK-Lambda Corporation

Subcategory :

Power Supply Modules
