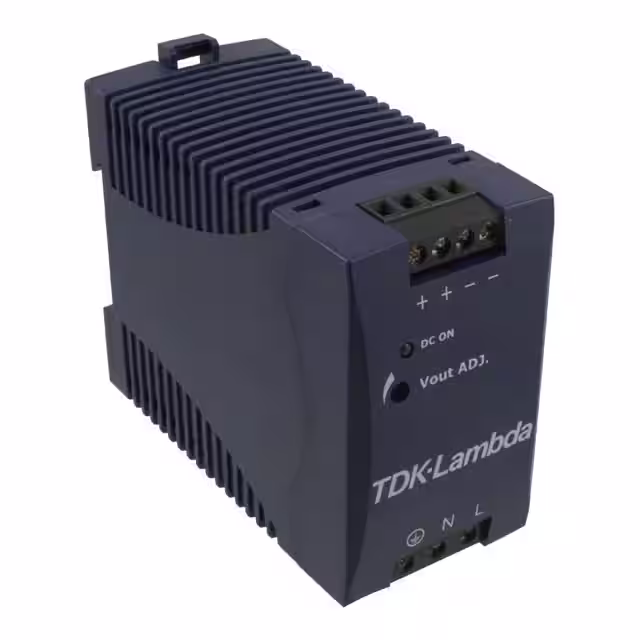

DPP25-5

Manufacturer :

TDK-Lambda, Inc.

Product Category :

Number of Outputs :

1

Output Voltage-Min :

5 V

Output Voltage-Max :

6 V

Positions Per Level :

16

Terminal Position :

UNSPECIFIED

Operating Temperature :

-40°C ~ 80°C

Reach Compliance Code :

Compliant

Approvals :

CE, UL

Header Orientation :

--

Color :

Blue

Ingress Protection :

--

Contact Material :

Phosphor Bronze

Minimum Isolation Voltage :

3000 Vdc

Manufacturer :

TDK-Lambda Corporation

Temperature Grade :

COMMERCIAL EXTENDED

Package Shape :

RECTANGULAR

Output Current-Max :

5 A

Surface Mount :

No

Torque - Screw :

--

Current - UL :

5A

Pin Count :

7

Current - IEC :

--

Wire Strip Length :

--

Subcategory :

Power Supply Modules

Number of Functions :

1

Voltage - UL :

250V

Input Voltage :

85 to 264 V

Terminal Form :

UNSPECIFIED

Packaging :

Bulk

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Terminals :

7

Number of Levels :

1

Height :

75 mm

Termination Style :

IDC

Type :

Plug, Female Sockets

Housing Material :

Polybutylene Terephthalate (PBT), Polyester

Number of Positions :

16

Plug Wire Entry :

180°

Contact Mating Finish :

Tin-Lead

JESD-30 Code :

R-XXMA-X7

Screw Size :

--

Technology :

Hybrid

Efficiency (Main Output) :

78%

Input Voltage-Nom :

115 V

Wire Gauge or Range - mm² :

--

Mounting Type :

Free Hanging (In-Line)

Output Current :

5 A

Pitch :

0.138 (3.50mm)

Output Voltage :

5 V

Protections :

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Series :

Buchanan

Length :

91 mm

Ripple Voltage (Main Out) :

0.01768 Vrms

Material Flammability Rating :

--

Contact Tail Length :

--

Maximum Output Power :

25 W

Width :

45 mm

Trim/Adjustable Output :

yes

Wire Gauge or Range - AWG :

22-24 AWG

Mounting :

Desktop

Input Frequency :

47 to 63 Hz

Insulation Height :

0.463 (11.76mm)

Features :

Mating Flange

Analog IC - Other Type :

AC-DC REGULATED POWER SUPPLY MODULE

Total Power Output-Max :

25 W
