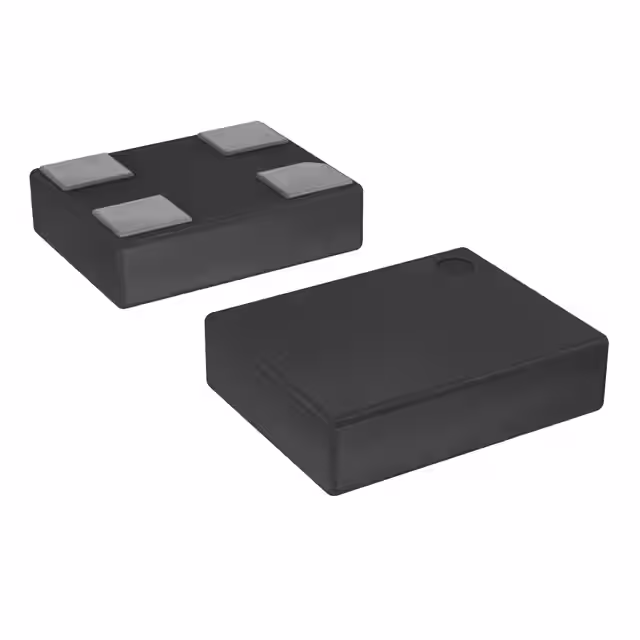

DSC6001CE1A-016.0000

Manufacturer :

Microchip Technology

Product Category :

Oscillators

Base Resonator :

MEMS

Current - Supply (Max) :

1.3mA Typ

Factory Lead Time :

12 Weeks

Operating Frequency :

16MHz

Voltage - Supply :

1.8V~3.3V

Package / Case :

4-VDFN

Type :

XO (Standard)

Spread Spectrum Bandwidth :

-

Height Seated (Max) :

0.035 0.90mm

Frequency Stability :

±50ppm

Output :

CMOS

Output Load :

10 pF

Series :

DSC60XX

Current - Supply (Disable) (Max) :

-

Surface Mount :

yes

Mounting Feature :

Surface Mount

Height - Seated (Max) :

0.035 (0.90mm)

Symmetry-Max :

55/45%

Size / Dimension :

0.126Lx0.098W 3.20mmx2.50mm

Rise Time-Max :

2ns

RoHS Status :

ROHS3 Compliant

Package :

Tube

Mounting Type :

Surface Mount

Packaging :

Tube

Product Status :

Obsolete

Additional Feature :

AEC-Q100; ENABLE/DISABLE FUNCTION; BAG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Oscillator Type :

CMOS

Absolute Pull Range (APR) :

-

Ratings :

AEC-Q100

Operating Temperature :

-20°C~70°C

Reach Compliance Code :

Compliant

Function :

Enable/Disable

Fall Time-Max :

2ns

Physical Dimension :

3.2mm x 2.5mm x 0.85mm

Manufacturer :

Microchip Technology Inc

Frequency Adjustment-Mechanical :

No

Frequency :

16MHz
