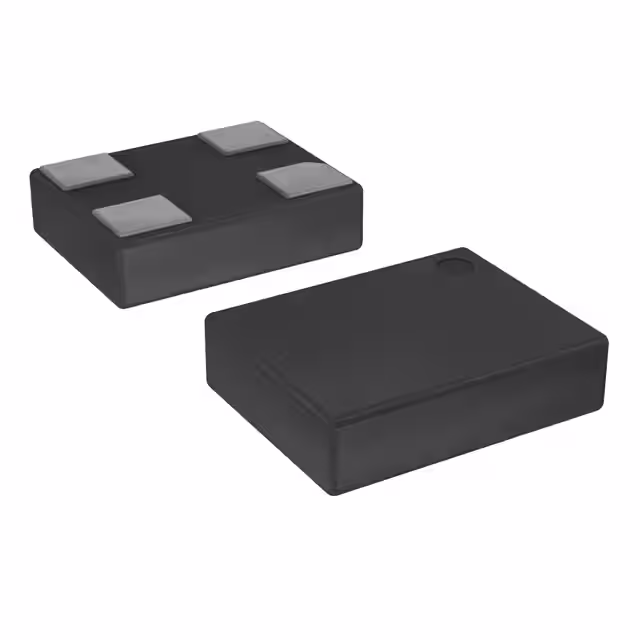

DSC6001CE1A-027.1780

Manufacturer :

Microchip Technology

Product Category :

Oscillators

Operating Frequency :

27.178MHz

Base Resonator :

MEMS

Physical Dimension :

3.2mm x 2.5mm x 0.85mm

Type :

XO (Standard)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

0.126Lx0.098W 3.20mmx2.50mm

Operating Temperature :

-20°C~70°C

Frequency :

27.178MHz

Fall Time-Max :

2ns

Additional Feature :

AEC-Q100; ENABLE/DISABLE FUNCTION; TR

Current - Supply (Max) :

1.3mA Typ

Absolute Pull Range (APR) :

-

Surface Mount :

yes

Mounting Type :

Surface Mount

Frequency Adjustment-Mechanical :

No

Function :

Enable/Disable

Oscillator Type :

CMOS

Spread Spectrum Bandwidth :

-

Current - Supply (Disable) (Max) :

-

Package :

Tape and Reel (TR)

RoHS Status :

RoHS Compliant

Symmetry-Max :

55/45%

Package / Case :

4-SMD, No Lead

Rise Time-Max :

2ns

Height - Seated (Max) :

0.035 (0.90mm)

Series :

DSC60XX

Ratings :

AEC-Q100

Packaging :

Tape and Reel (TR)

Product Status :

Obsolete

Manufacturer :

Microchip Technology Inc

Height Seated (Max) :

0.035 0.90mm

Reach Compliance Code :

Compliant

Output Load :

10 pF

Output :

CMOS

Frequency Stability :

±50ppm

Voltage - Supply :

1.8V~3.3V

Mounting Feature :

Surface Mount
