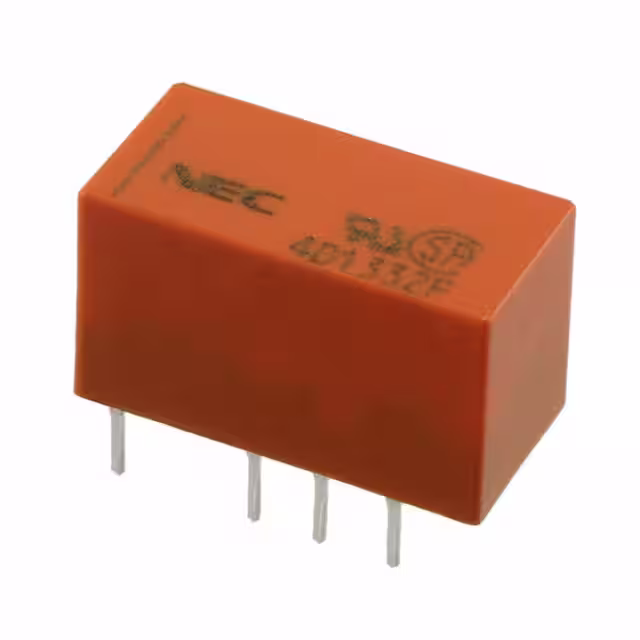

EC2-12ND
Or copy the link below:
- Mfr.Part #
- EC2-12ND
- Manufacturer
- KEMET
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 2A 12VDC
- Stock
- 24,298
- In Stock ：
- 24,298
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Signal Relays, Up to 2 Amps
- PCB Hole Count :
- 8
- End Contact Material :
- Silver Alloy
- End Contact Plating :
- GOLD ALLOY
- Dielectric Strength Between Coil and Contacts :
- 1500
- Contact/Output Supply Type :
- AC/DC
- Body Height :
- 9.4
- Body Breadth :
- 7.5
- Relay Type :
- POWER/SIGNAL RELAY
- Coil Release Voltage(DC) :
- 1.2
- Relay Form :
- 2 Form C
- Coil Voltage(DC)-Max :
- 12
- Reference Standard :
- TUV
- Physical Dimension :
- 15mm x 7.5mm x 9.4mm
- Relay Function :
- DPDT
- Body Length or Diameter :
- 15
- Insulation Resistance :
- 1000000000
- Release Time :
- 1
- Termination Type :
- Solder
- Coil/Input Supply Type :
- DC
- Coil Resistance :
- 720
- Number of Terminals :
- 8
- Electrical Life :
- 1000000
- Contact Resistance :
- 50
- Series :
- EC2
- Weight :
- 1.9
- Coil Operate Voltage(DC) :
- 9
- Dielectric Strength Between Open Contacts :
- 1000
- Coil Power :
- 200
- Operate Time :
- 2
- Input Switching Control Type :
- Random
- Relay Action :
- LATCHED
- Terminal Length :
- .003
- Datasheets
- EC2-12ND
