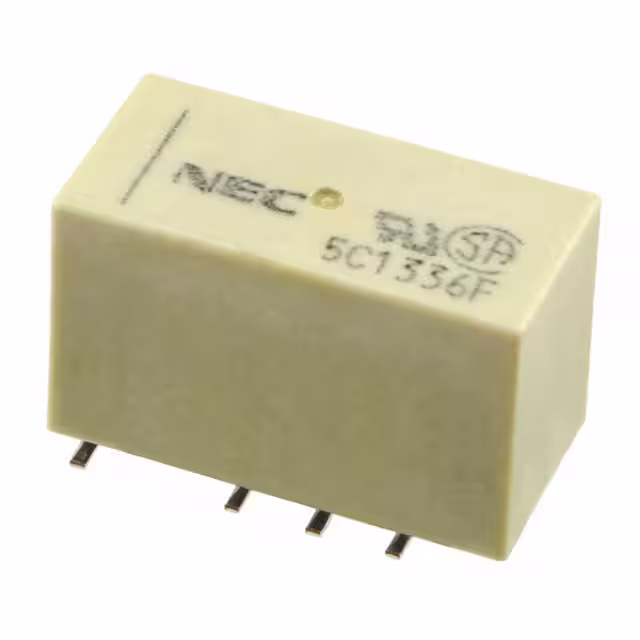

EE2-5NU-L
Or copy the link below:
- Mfr.Part #
- EE2-5NU-L
- Manufacturer
- KEMET
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 2A 5VDC
- Stock
- 6,255
- In Stock ：
- 6,255
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Signal Relays, Up to 2 Amps
- Coil Power :
- 140
- Coil/Input Supply Type :
- DC
- Weight :
- 1.9
- PCB Hole Count :
- 10
- End Contact Plating :
- GOLD ALLOY
- Coil Release Voltage(DC) :
- .5
- Contact Resistance :
- 75
- Dielectric Strength Between Open Contacts :
- 1000
- Contact Current(DC)-Max :
- 2
- Reference Standard :
- CSA; UL
- Physical Dimension :
- 15mm x 7.5mm x 9mm
- Mounting Feature :
- SURFACE MOUNT-STRAIGHT
- Operate Time :
- 2
- Release Time :
- 1
- Relay Type :
- POWER/SIGNAL RELAY
- Relay Function :
- DPDT
- Insulation Resistance :
- 1000000000
- Contact Voltage(AC)-Max :
- 250
- Coil Operate Voltage(DC) :
- 3.75
- Coil Resistance :
- 178
- Termination Type :
- Solder
- Contact/Output Supply Type :
- AC/DC
- Electrical Life :
- 100000
- Relay Action :
- Momentary
- Packing Method :
- Tape and Reel
- Body Length or Diameter :
- 15
- Body Breadth :
- 7.5
- Coil Voltage(DC)-Max :
- 5
- End Contact Material :
- Silver Alloy
- Coil Current(DC)-Max :
- .3
- Number of Terminals :
- 10
- Relay Form :
- 2 Form C
- Dielectric Strength Between Coil and Contacts :
- 1500
- Body Height :
- 9
- Input Switching Control Type :
- Random
- Contact Current(AC)-Max :
- 2
- Contact Voltage(DC)-Max :
- 220
- Datasheets
- EE2-5NU-L
