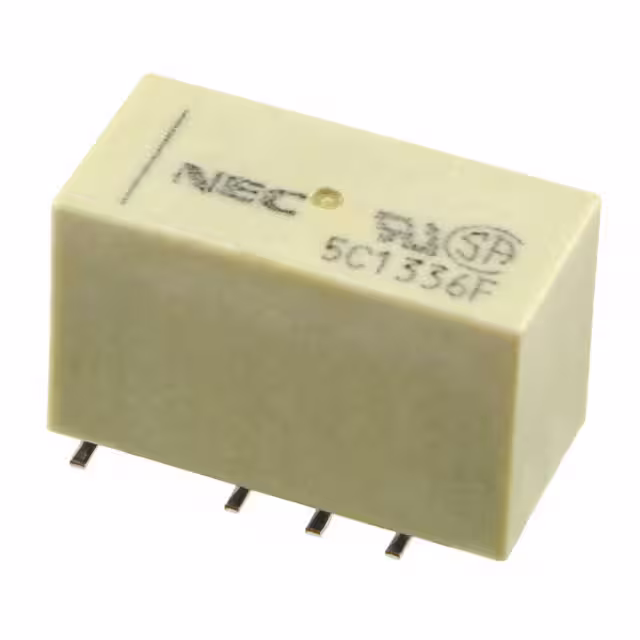

EE2-5SNUH

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Voltage Rating (AC) :

250 V

Max Voltage Rating (DC) :

220 V

Depth :

7.5 mm

Power Consumption :

100 mW

Min Operating Temperature :

-40 °C

Coil Power :

100 mW

Contact Material :

Gold, Silver

Operate Time :

2 ms

Height :

9 mm

Number of Poles :

1

Coil Type :

Latching, Single Coil

Release Time :

1 ms

REACH SVHC :

No SVHC

Coil Resistance :

250 Ω

Max Current Rating :

2 A

Throw Configuration :

DPDT

Length :

15 mm

Max Operating Temperature :

85 °C

Coil Current :

20 mA

Relay Type :

GENERAL PURPOSE

Max Voltage Rating (AC) :

250 V

Number of Pins :

8

Termination :

Gull wing

RoHS :

Compliant

Coil Voltage (DC) :

5 V

Radiation Hardening :

No

Current Rating :

2 A

Contact Current Rating :

2 A

Mount :

PCB, Surface Mount
