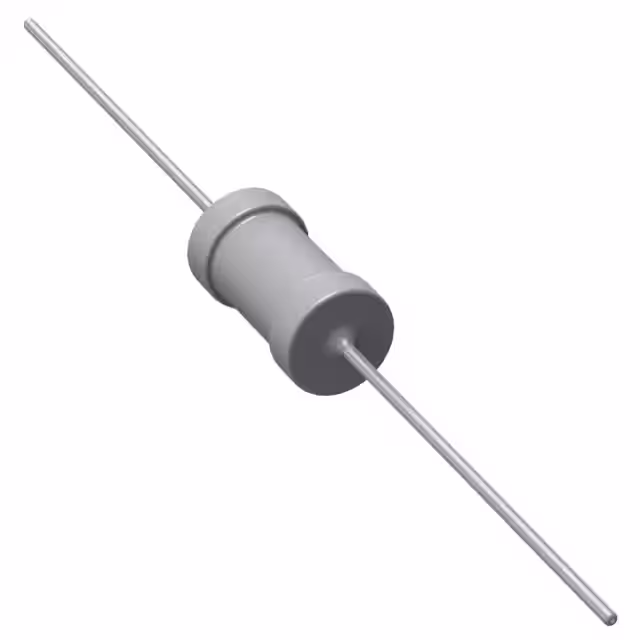

ER7415RJT

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Packing Method :

Ammo Pack

Working Voltage :

100 V

Lead/Base Style :

Axial

Mounting Style :

PCB Mount

Voltage Rating :

100V

Temperature Coefficient :

0, 60 ppm/°C

Operating Temperature Range :

- 55 C to + 200 C

Radiation Hardening :

No

Max Power Dissipation :

3 W

Series :

ER, CGS

Voltage Rating (DC) :

100 V

Termination Style :

Axial

Resistance Tolerance :

5

Minimum Operating Temperature :

-55°C

Number of Terminals :

2

Features :

--

Number of Terminations :

2

Length :

13.5 mm

Height - Seated (Max) :

--

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

RoHS :

Details

Termination :

Axial

Package Length :

13.5 mm

REACH SVHC :

Unknown

Reach Compliance Code :

Compliant

Height :

-

Power (Watts) :

3W

ECCN Code :

EAR99

Resistor Type :

High Power

Product Status :

Active

Operating Temperature :

-55°C ~ 200°C

ELV :

Compliant

Tolerance :

±5%

Lifecycle Status :

Production (Last Updated: 1 week ago)

Lead Length :

38 mm

Type :

High Power Resistors

Number of Pins :

2

Surface Mount :

No

Resistance :

15 OHM

Manufacturer :

TE Connectivity

Package Shape :

TUBULAR PACKAGE

Lead Diameter :

0.8 mm

Product Width :

-

Subcategory :

Resistors

Power Rating :

3.0000 W

Min Operating Temperature :

-55 °C

Base Product Number :

ER74

Pbfree Code :

yes

Rated Power Dissipation (P) :

3 W

Brand :

TE Connectivity / Holsworthy

Max Operating Temperature :

200 °C

Terminal Shape :

Wire

HTS Code :

8533.21.00.80

Failure Rate :

--

Packaging :

Tape and Box (TB)

Factory Lead Time :

15 Weeks, 6 Days

Product Category :

Wirewound Resistors - Through Hole

Package :

Tape and Box (TB)

Width :

-

Military Standard :

Not

Supplier Device Package :

Axial

Composition :

Wirewound

Qualification :

-

Product Type :

Wirewound Resistors

Product Length :

13.5

Diameter :

6 mm

Product :

Power Resistors Wirewound Silicone Coated

Maximum Operating Temperature :

+200°C

Mounting Feature :

THROUGH HOLE MOUNT

Size / Dimension :

0.236 Dia x 0.531 L (6.00mm x 13.50mm)

Number of Resistors :

1

Technology :

Wire Wound

Mount :

Axial, Through Hole

Package / Case :

Axial

Construction :

Cylindrical
