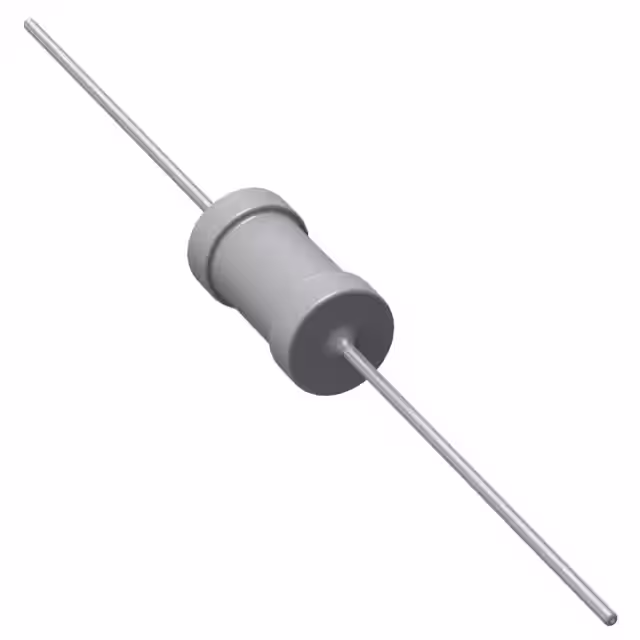

ER741R0JT

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Maximum Operating Temperature :

+200°C

Product Type :

Wirewound Resistors

Terminal Shape :

Wire

Mounting Style :

PCB Mount

Pbfree Code :

yes

Length :

13.5 mm

Temperature Range @ Derated Power :

20 to 200

Termination Style :

Axial

Package Length :

13.5 mm

Type :

Wirewound

Subcategory :

Resistors

Package / Case :

Axial

Power Rating :

3W

Operating Temp Range :

-55C to 200C

Mounting Feature :

THROUGH HOLE MOUNT

Features :

--

Reach Compliance Code :

Compliant

Flame-Proof Support :

No

Power (Watts) :

3W

Case Style :

Conformal Coated

Product Depth (mm) :

Not Required(mm)

Temperature Coefficient :

0/ +60ppm/°C

Number of Terminals :

2

Minimum Operating Temperature :

-55°C

Product Length (mm) :

13.5(mm)

HTS Code :

8533.21.00.80

Product :

Power Resistors Wirewound Silicone Coated

Failure Rate :

--

Brand :

TE Connectivity / Holsworthy

Tolerance :

±5%

Product Height (mm) :

Not Required(mm)

Construction :

Cylindrical

Product Status :

Active

Number of Terminations :

2

Packaging :

Tape and Box (TB)

Lead Spacing (nom) :

Not Required(mm)

Product Width :

-

Resistance Tolerance :

± 5%

Resistance :

1 Ohms

Surface Mount :

No

Package :

Cut Tape (CT);Tape and Box (TB);

Product Category :

Wirewound Resistors - Through Hole

ECCN Code :

EAR99

Voltage Rating :

100V

Power Rating(s) :

3(W)

Product Length :

13.5mm

Lead Diameter :

0.8 mm

Working Voltage :

100 V

Packing Method :

Ammo Pack

Technology :

Wire Wound

Height - Seated (Max) :

--

Factory Lead Time :

12 Weeks, 1 Day

Package Shape :

TUBULAR PACKAGE

Operating Temperature Range :

- 55 C to + 200 C

Manufacturer :

TE Connectivity

Supplier Device Package :

Axial

Operating Temperature :

-55°C ~ 200°C

Tolerance (+ or -) :

5%

Rated Power Dissipation (P) :

3 W

Size / Dimension :

0.236 Dia x 0.531 L (6.00mm x 13.50mm)

Composition :

Wirewound

Series :

ER, CGS

Width :

6 mm

Resistor Type :

High Power

Qualification :

-

Military Standard :

Not Required

Product Diameter (mm) :

6(mm)
