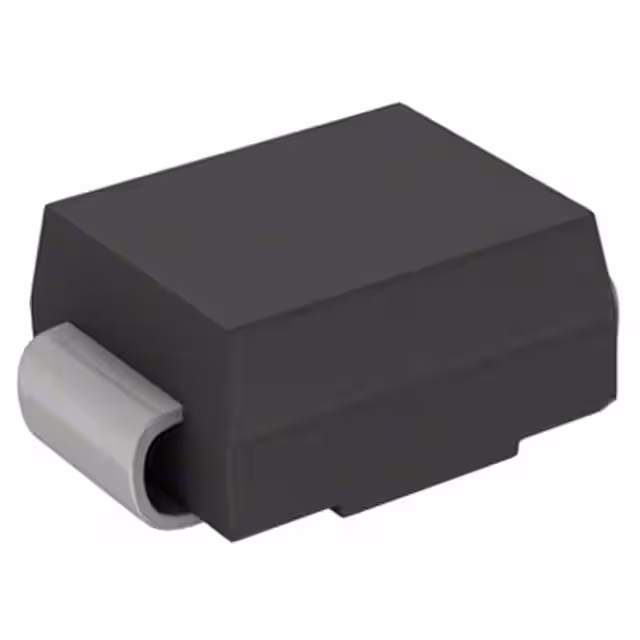

ES1J-13-F

Manufacturer :

Diodes Incorporated

Product Category :

Diodes - Rectifiers - Single

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Minimum Operating Temperature :

- 55 C

Diode Configuration :

Single

Product :

Rectifiers

RoHS :

Details

Diode Type :

Standard

Brand :

Diodes Incorporated

Manufacturer :

Diodes Incorporated

Configuration :

Single

Current - Average Rectified (Io) :

1A

Product Type :

Rectifiers

Product Category :

Rectifiers

Type :

Fast Recovery Rectifiers

Package :

Digi-Reel?

Packaging :

MouseReel

Supplier Device Package :

SMA

Current - Reverse Leakage @ Vr :

5 µA @ 600 V

Series :

-

Repetitive Peak Reverse Voltage :

600

Mounting Style :

SMD/SMT

Maximum Operating Temperature :

+ 150 C

Voltage - DC Reverse (Vr) (Max) :

600 V

Reverse Recovery Time (trr) :

35 ns

Recovery Time :

30 ns

Reverse Recovery Time :

35

Package / Case :

DO-214AC, SMA

Product Status :

Active

Capacitance @ Vr, F :

20pF @ 4V, 1MHz

Operating Temperature - Junction :

-55°C ~ 150°C

Mounting Type :

Surface Mount

Subcategory :

Diodes and Rectifiers

Vf - Forward Voltage :

1.3 V

Max Surge Current :

30 A

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 1 A
