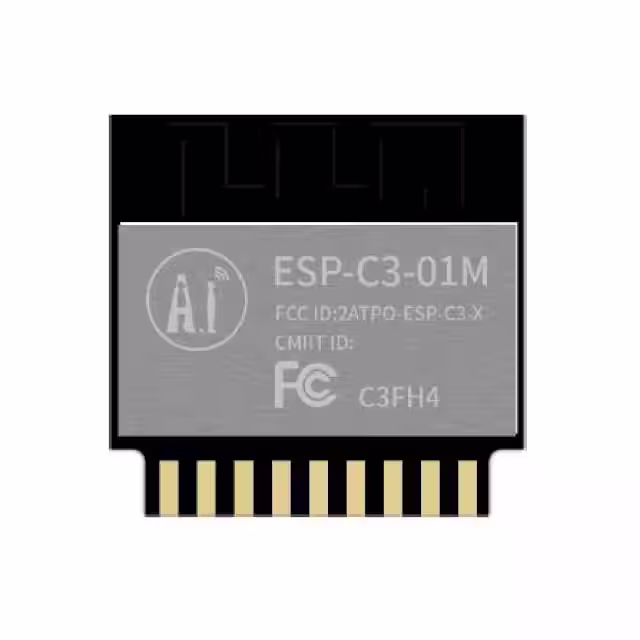

ESP32-C3-01M
Or copy the link below:
- Mfr.Part #
- ESP32-C3-01M
- Manufacturer
- RF Solutions
- Package / Case
- 18-SMD Module
- Datasheet
- Download
- Description
- WI-FI, BLE5.0, 32BIT MCU INT ANT
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- RF Solutions
- Product Category :
- RF Transceiver Modules and Modems
- Power - Output :
- 18dBm
- Product Status :
- Active
- Operating Temperature :
- -40°C ~ 85°C
- Frequency :
- 2.4GHz
- Data Rate :
- 150Mbps
- Manufacturer :
- RF Solutions
- Protocol :
- 802.11b/g/n, Bluetooth v5.0
- Mounting Type :
- Surface Mount
- Product Category :
- RF Solutions
- Sensitivity :
- -96dBm
- Series :
- C3
- Supply Voltage :
- 3.0 → 3.6V dc
- RF Family/Standard :
- Bluetooth, WiFi
- Package / Case :
- 18-SMD Module
- Memory Size :
- 4MB Flash, 384kB ROM, 408kB SRAM
- Antenna Type :
- PCB Trace
- Brand :
- RF Solutions
- Dimensions :
- 18 x 18 x 2.8mm
- Current - Receiving :
- 90mA ~ 93mA
- Serial Interfaces :
- ADC, GPIO, I²C, I²S, PWM, UART
- Modulation :
- 64-QAM, BPSK, CCK, OFDM
- Package :
- Bag
- Current - Transmitting :
- 280mA ~ 350mA
- Utilized IC / Part :
- ESP32-C3
- Voltage - Supply :
- 3V ~ 3.6V
- Datasheets
- ESP32-C3-01M
2.4GHz Bluetooth, WiFi -40°C ~ 85°C 3V ~ 3.6V ADC, GPIO, I²C, I²S, PWM, UART PCB Trace 150Mbps 18dBm 802.11b/g/n, Bluetooth v5.0 -96dBm 18-SMD Module
ESP32-C3-01M Overview
RF Transceiver' mounting is done according to the Surface Mount method.Operating at -40°C ~ 85°C is the recommended temperature for Transceiver's operation.This RF Transceiver Module belongs to the C3 family.RF Transceivers with 3V ~ 3.6V voltage capabilities can be used.2.4GHz is the frequency of the RF Transceiver Module.
ESP32-C3-01M Features
Surface Mount
3V ~ 3.6V volts
ESP32-C3-01M Applications
There are a lot of RF Solutions
ESP32-C3-01M RF Transceiver Modules applications.
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
