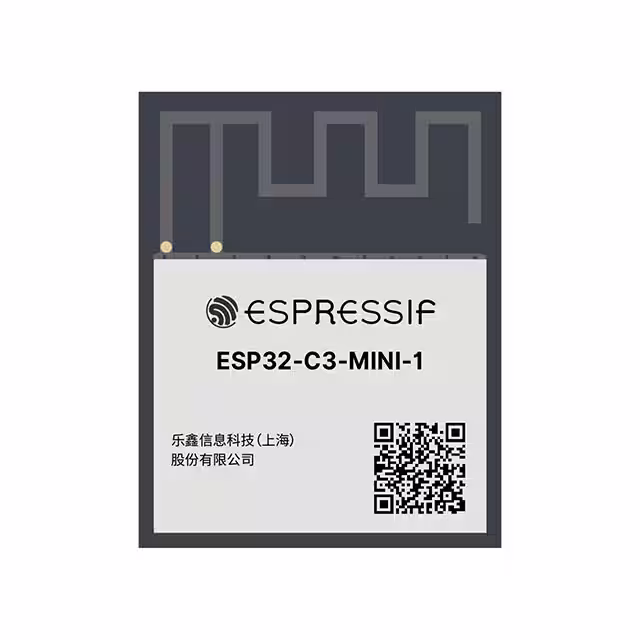

ESP32-C3-MINI-1-H4
Or copy the link below:
- Mfr.Part #
- ESP32-C3-MINI-1-H4
- Manufacturer
- Espressif Systems
- Package / Case
- 53-SMD Module
- Datasheet
- Download
- Description
- IC PSRAM 4MB FLASH SMD
- Stock
- 35,386
- In Stock ：
- 35,386
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Espressif Systems
- Product Category :
- RF Transceiver Modules and Modems
- Current - Transmitting :
- 290mA ~ 350mA
- Maximum Operating Temperature :
- + 105 C
- Serial Interfaces :
- ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB
- Operating Temperature :
- -40°C ~ 105°C (TA)
- Power - Output :
- 20.5dBm
- Memory Size :
- 4MB Flash, 384kB ROM, 408kB SRAM
- Operating Supply Voltage :
- 3 V to 3.6 V
- Output Power :
- 20.5 dBm
- Minimum Operating Temperature :
- - 40 C
- Current - Receiving :
- 82mA ~ 84mA
- Modulation :
- -
- Antenna Connector Type :
- PCB
- Voltage - Supply :
- 3V ~ 3.6V
- Interface Type :
- GPIO, I2C, I2S, SPI, UART
- RF Family/Standard :
- Bluetooth, WiFi
- Package / Case :
- 53-SMD Module
- Data Rate :
- 150 Mb/s
- Sensitivity :
- -104dBm
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Antenna Type :
- PCB Trace
- Utilized IC / Part :
- ESP32-C3FH4
- RoHS :
- Details
- Frequency :
- 2412 MHz to 2484 MHz
- Mounting Type :
- Surface Mount
- Series :
- ESP32-C3
- Protocol :
- 802.11b/g/n, Bluetooth v5.0
- Product Status :
- Active
- Dimensions :
- 13.2 mm x 16.6 mm x 2.4 mm
- Datasheets
- ESP32-C3-MINI-1-H4
2412 MHz to 2484 MHz Bluetooth, WiFi -40°C ~ 105°C (TA) 3V ~ 3.6V ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB PCB Trace 150 Mb/s 20.5dBm 802.11b/g/n, Bluetooth v5.0 -104dBm 53-SMD Module
ESP32-C3-MINI-1-H4 Overview
The RF Transceiver' mounting method adopted is Surface Mount.-40°C ~ 105°C (TA) should be the operating temperature when Transceiver is operating.This RF Transceiver Module belongs to the ESP32-C3 family.It is possible for the RF Transceiver to supply voltages of 3V ~ 3.6V.There is 2412 MHz to 2484 MHz frequency set for the RF Transceiver Module.
ESP32-C3-MINI-1-H4 Features
Surface Mount
3V ~ 3.6V volts
ESP32-C3-MINI-1-H4 Applications
There are a lot of Espressif Systems
ESP32-C3-MINI-1-H4 RF Transceiver Modules applications.
- Transmit
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
