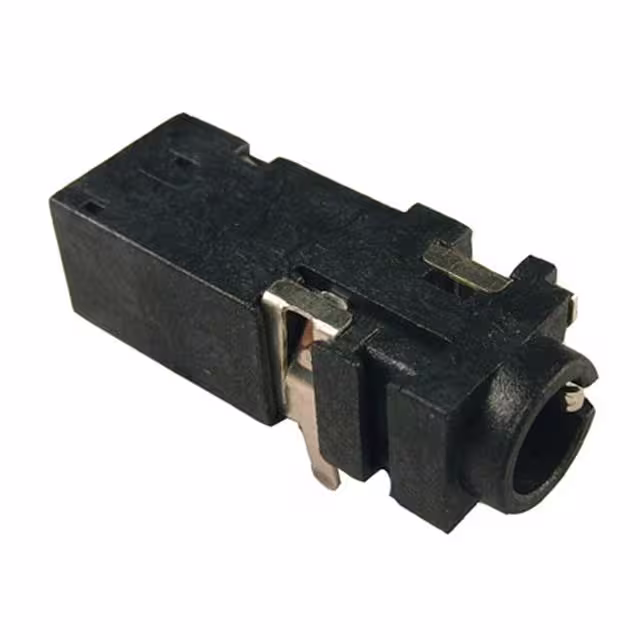

FC68126

Manufacturer :

CLIFF

Product Category :

Audio Connectors

Gender :

Socket

Termination :

Solder

Panel Hole Size :

-

Connector Type :

Phone Jack

Features :

Board Guide

Includes :

-

Body Color :

Black

Body Material :

-

Housing Material :

Liquid Crystal Polymer (LCP)

Connection :

Print

Pin Diameter :

3.5mm

Shielding :

Unshielded

Type :

FC68126

Mounting Type :

Through Hole, Right Angle

Contact Material :

Phosphor Bronze

Product Status :

Active

Voltage - Rated :

16VDC

Cable Opening :

-

Number of Positions/Contacts :

4 Conductors, 4 Contacts

Internal Switch(s) :

Does Not Contain Switch

Actual Diameter :

0.138 (3.50mm)

Mating Length/Depth :

0.551 (14.00mm)

Insulation Color :

-

Contact Plating :

Nickel Plated Contacts

Material (details) :

PVC

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Thread Size :

-

Content :

1pc(s)

Reach Compliance Code :

Unknown

Contact Material - Plating :

Silver

Package :

Bag

Manufacturer :

Cliff Electronic Components

Series :

-

Manufacturer part # :

FC68126

Signal Lines :

Stereo (4 Conductor, TRRS)

Operating Temperature :

-20°C ~ 60°C
