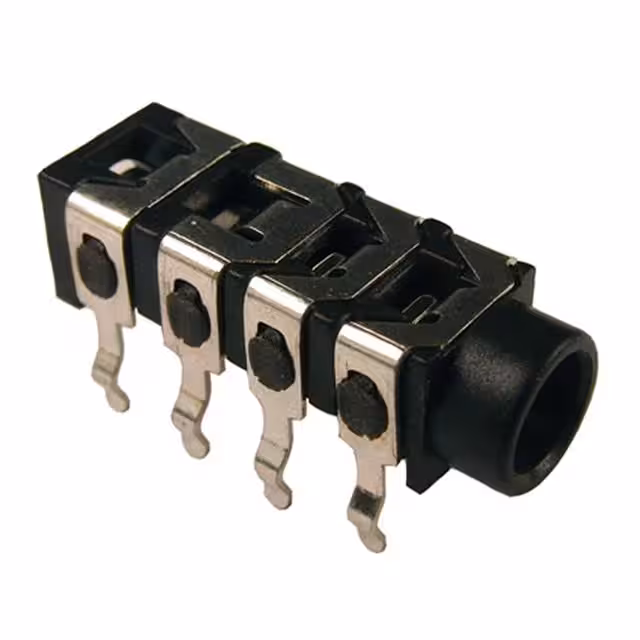

FC68128

Manufacturer :

CLIFF

Product Category :

Audio Connectors

Number of Positions/Contacts :

4 Conductors, 4 Contacts

Shielding :

Unshielded

Mounting Type :

Through Hole, Right Angle

Number of Ports :

1

Connector Type :

Phone Jack

Voltage - Rated :

-

Internal Switch(s) :

Does Not Contain Switch

IEC Conformance :

No

Features :

Board Lock

Insulation Color :

-

Actual Diameter :

-

Package :

Bag

Series :

-

Operating Temperature :

-

Termination Type :

Solder

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Housing Material :

-

Includes :

-

Termination :

Solder

Contact Plating :

Nickel Plated Contacts

Number of Poles :

4

Contact Material - Plating :

-

Pin Diameter :

3.5mm

Mating Length/Depth :

0.661 (16.80mm)

Cable Opening :

-

Product Status :

Active

Manufacturer :

Cliff Electronic Components

Option :

GENERAL PURPOSE

Configuration :

1X1 HORIZONTAL

Body Material :

-

Body Color :

Black

MIL Conformance :

No

Panel Hole Size :

-

Reach Compliance Code :

Compliant

DIN Conformance :

No

Thread Size :

-

Signal Lines :

Stereo (4 Conductor, TRRS)

Gender :

FEMALE

Contact Material :

-

Body/Shell Style :

JACK
