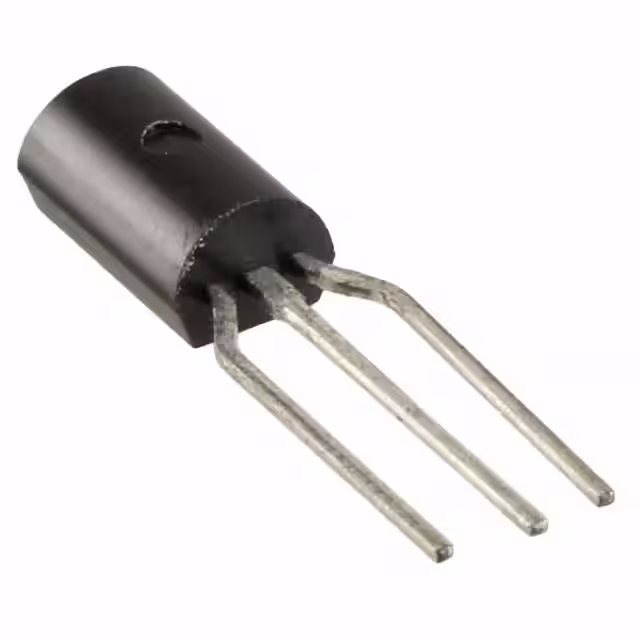

FPN660A

Manufacturer :

onsemi

Product Category :

Transistors - Bipolar (BJT) - Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power - Max :

1W

Time@Peak Reflow Temperature-Max (s) :

Not Applicable

Voltage - Collector Emitter Breakdown (Max) :

60V

Number of Elements :

1

Qualification Status :

COMMERCIAL

Number of Terminations :

3

Reach Compliance Code :

Unknown

Operating Temperature :

-55°C~150°C TJ

Transistor Type :

PNP

JESD-609 Code :

e3

DC Current Gain (hFE) (Min) @ Ic, Vce :

250 @ 500mA 2V

JEDEC-95 Code :

TO-226AE

Surface Mount :

No

Configuration :

Single

Current - Collector Cutoff (Max) :

100nA ICBO

Polarity/Channel Type :

PNP

Frequency - Transition :

75MHz

Peak Reflow Temperature (Cel) :

Not Applicable

JESD-30 Code :

O-PBCY-T3

Mounting Type :

Through Hole

Package / Case :

TO-226-3, TO-92-3 Long Body

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Transistor Element Material :

SILICON

Terminal Position :

BOTTOM

Packaging :

Bulk

Vce Saturation (Max) @ Ib, Ic :

400mV @ 200mA, 2A

Current - Collector (Ic) (Max) :

3A

Pin Count :

3

Transition Frequency :

75MHz

Terminal Finish :

MATTE TIN
