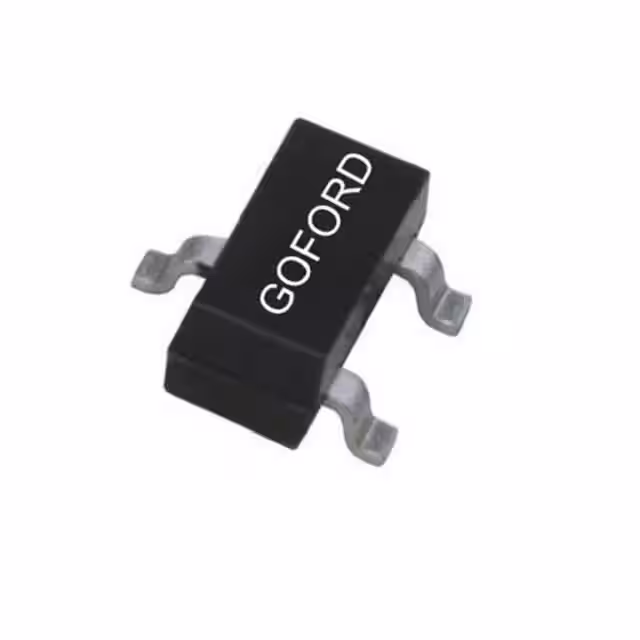

G1003A

Manufacturer :

Goford Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Product Status :

Active

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Drain to Source Voltage (Vdss) :

100V

RoHS Status :

RoHS Compliant

Power Dissipation (Max) :

5W (Tc)

Supplier Device Package :

SOT-23-3

Vgs(th) (Max) @ Id :

3V @ 250uA

Packaging :

Tape and Reel (TR)

Rds On (Max) @ Id, Vgs :

145 mΩ @ 5A,10V

FET Type :

N Trench

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Gate Charge (Qg) (Max) @ Vgs :

18.2 nC @ 10 V

FET Feature :

-

Continuous Drain Current (Id) @ 25°C :

5A

Mounting Type :

Surface Mount

Input Capacitance (Ciss) (Max) @ Vds :

622 pF @ 25 V

Package / Case :

SOT-23-3L

Series :

-

Technology :

MOSFET (Metal Oxide)

Operating Temperature :

-55°C ~ 150°C (TJ)

Vgs (Max) :

±20V

Power Dissipation-Max (Ta) :

5W

Current - Continuous Drain (Id) @ 25°C :

3A (Tc)
